Product Series & Specifications

Main Forms:

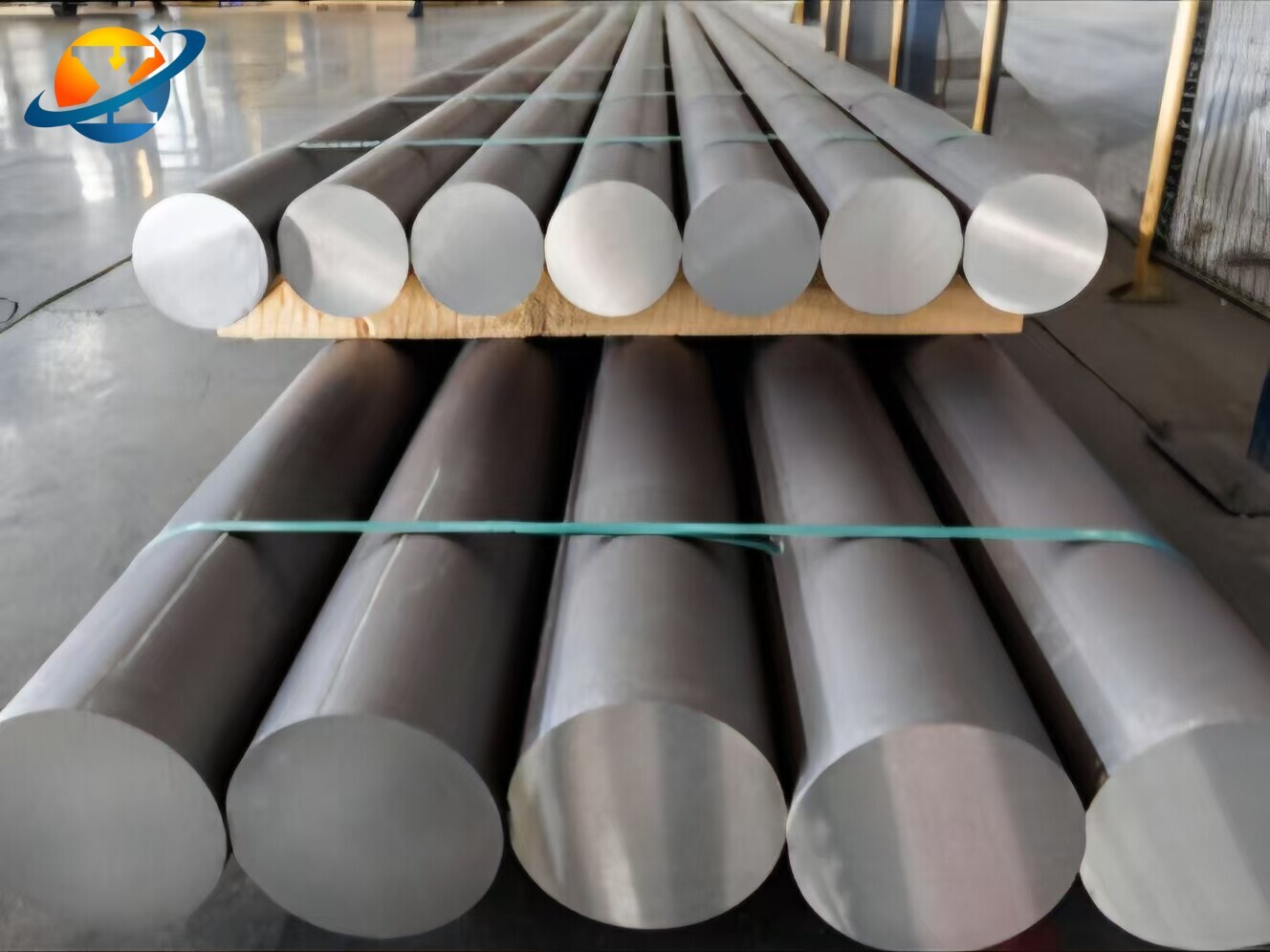

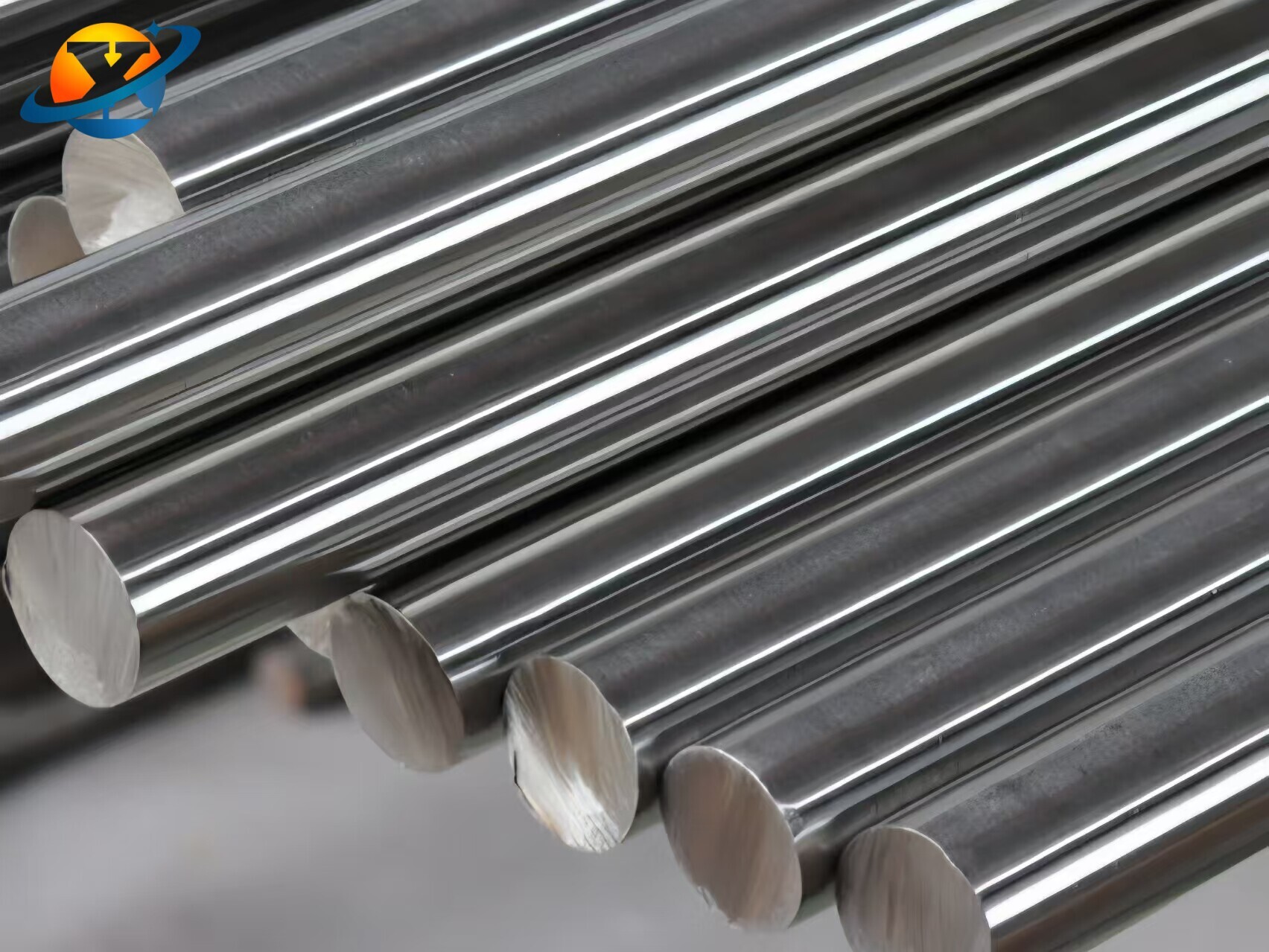

Round Bars/Rods: The most common form.

Square Bars:

Hexagonal Bars:

Flat Bars:

Hollow Bars/Rods: For weight reduction or components requiring internal passages.

Custom Shapes: Unique bar shapes can be provided according to customer drawings.

Material Grade:

Inconel Series: Inconel 600 (N06600), Inconel 625 (N06625).

Incoloy Series: Incoloy 800 (N08800), Incoloy 800H/HT (N08810/N08811), Incoloy 825 (N08825), Incoloy 840 (N08840).

Hastelloy Series: Hastelloy C-276 (N10276), Hastelloy C-22 (N06022), etc.

Monel Series: Monel 400 (N04400), Monel K-500 (N05500), etc.

Other High-Performance Alloys: Depending on demand, we can provide bars/rods of Nimonic and other grades.

Size Range:

Diameter/Side Length: Available in a range from φ5mm (0.2") to φ600mm (23.6").

Length: Standard lengths up to L≤12000mm (12 meters); customizable as required.

Applicable Standards:

ASME SB / ASTM B Series (Primary Standards):

ASTM B166 / ASME SB-166: (Inconel 600 Bar/Rod/Wire)

ASTM B446 / ASME SB-446: (Inconel 625 Bar/Rod/Wire)

ASTM B408 / ASME SB-408: (Incoloy 800, 800H, 800HT Bar/Rod/Wire)

ASTM B425 / ASME SB-425: (Incoloy 825 Bar/Rod/Wire)

ASTM B574 / ASME SB-574: (Hastelloy C-276, C-22, etc. Nickel-Chromium-Molybdenum Alloy Bar/Rod/Wire)

ASTM B164 / ASME SB-164: (Monel 400 Bar/Rod/Wire)

AMS (Aerospace Material Specifications): For example, AMS 5660 (Inconel 600 Bar/Forging), AMS 5666 (Inconel 625 Bar/Forging).

Biomedical Standards: (If applicable, please confirm relevant standards based on specific alloy grades and final application, e.g., certain Cobalt-Chromium-Molybdenum-Nickel alloys).

Other International General Standards: GB/T, JIS, DIN, GOST, ISO, etc. (specific numbers available upon request).

Surface Finish: Available in black forged, machined, ground, polished, pickled, or other surface conditions to meet specific application requirements for dimensional accuracy, surface roughness, or aesthetics.

Manufacturing Process & Quality Control

High-Quality Melting & Bar Forming: Utilizing advanced vacuum melting (VIM/VAR/ESR) technologies to produce high-purity nickel-based alloy ingots. Subsequently, through rigorously controlled forging, hot rolling, and precision cold drawing and/or cold rolling processes, we ensure the nickel-based alloy bar/rod's density, uniformity, excellent surface finish, and mechanical properties.

Precision Heat Treatment: Implementing precise solution annealing and/or aging treatments to relieve processing stress, optimize grain structure, and ensure the material's creep strength, oxidation resistance, toughness, and ultimate service performance.

High-Precision Machining: Offering turning, grinding, polishing, and other machining services to ensure precise bar dimensions and surface finish, meeting high-precision application demands.

Rigorous Quality Testing (INSPECTIONS):

Raw Material Inspection: Strict chemical composition analysis (ICP-OES, GDMS, etc.), including precise control over trace impurities and alloy element content.

Internal Flaw Detection: Ultrasonic Testing (UT) and/or Eddy Current Testing (ET) are performed on finished bars to ensure the absence of internal cracks, inclusions, porosity, and other defects.

Geometric Dimensions & Visual Inspection: Precise measurement of diameter, length, straightness, ovality, and high-precision visual and automated inspection for surface defects (e.g., scratches, indentations).

Mechanical Properties Testing: Tensile Test (Elongation, Yield Strength, Tensile Strength, including high-temperature tensile), Hardness Test, Impact Test, Bend Test, Creep Test (as required), Fatigue Test (as required).

Corrosion Testing: Corrosion tests in specific corrosive media (e.g., ASTM G28, G48, G35, G36) are performed to verify durability in harsh chemical environments.

Metallographic Analysis: Evaluation of grain size and microstructure to ensure conformity with standards and final application requirements.

Traceability: Comprehensive material reports are provided, ensuring complete traceability from raw material to final bar/rod, with support for independent third-party certification.

Why Choose Our Nickel-based Alloy Bars / Rods?

Extensive Experience: Specialized in the R&D and manufacturing of high-performance nickel-based alloy bars/rods for over 19 years, accumulating vast technical expertise and rigorous quality control experience in high-temperature alloy forming, precise alloy composition control, and extreme environment material applications.

Superior Melting & Processing: Utilizing advanced vacuum melting (VIM/VAR/ESR) technologies to produce high-purity nickel-based alloy ingots. Subsequently, through rigorously controlled forging, hot rolling, and precision cold drawing and/or cold rolling processes, we guarantee the bar's dimensional accuracy, grain structure, and superior performance.

Quality Assurance: All products are accompanied by comprehensive test reports, and independent third-party certifications (e.g., TUV, SGS, BV, Lloyd's Register) are readily available upon request, to ensure product quality strictly conforms to relevant standards and is committed to exceeding customer expectations.

ISO 9001:2015 Certified Facility: Strictly adhering to international quality management systems, we rigorously follow high standards and pursue continuous improvement at every step from raw material procurement to finished product delivery.

Customized Services: Whether for standard dimensions and grades or custom nickel-based alloy bars/rods based on customer drawings and specific requirements (e.g., unique alloy compositions, custom dimensions, shape, surface condition), we are committed to providing exclusive solutions.

Flexible Procurement & Stock: No strict minimum order quantity (MOQ) limit, respecting every user's purchasing requirements; common raw materials or finished products are kept in stock to expedite supply.

Test Samples Available: Free test samples can be provided for select products. According to company policy, customers are responsible for sample shipping costs.
