Our Product Range & Parameters

Material Grades:

Hastelloy C-276 Series (UNS N10276 / W.Nr. 2.4819): Offering excellent resistance to strong oxidizers, wet chlorine, and organic/inorganic mixed acids, suitable for severe corrosive fluid handling.

Hastelloy Alloy Series: C-22 (enhanced crevice corrosion & pitting resistance), B-2 / B-3 (extreme resistance to pure reducing hydrochloric acid), C-2000, Hastelloy X (high thermal stability and oxidation resistance), etc.

Manufacturing Standards:

Primary Standard: ASTM B574 / ASME SB574 (Standard Specification for Low-Carbon Nickel-Alloy Rod).

Aerospace Material Standard (AMS): AMS 5798, AMS 5754, etc.

Other International General Standards: DIN (German Institute for Standardization), JIS (Japanese Industrial Standards), GB/T, GOST, ISO, etc. (specific numbers available upon request).

Size Range:

Diameter: Available with a range from 6.0mm (0.24") to 350mm (13.78").

Length (L): Supported upon request to minimize material waste and optimize your project.

Surface Finish: Available in black forged, peeled, centerless ground, polished, or other finishes as per application requirements.

Cutting/Fabrication Services: We offer precision sawing, centerless grinding, and custom CNC machining services.

Manufacturing Process & Quality Control

Advanced Melting & Forging Processes: Utilizing VIM + ESR vacuum melting for pure metallurgical structure, and precision hot forging / cold drawing for optimal mechanical properties.

Precise Heat Treatment: Controlled solution annealing is performed to optimize material microstructure, relieve internal stresses, and achieve maximum corrosion resistance and machinability.

High-Precision Fabrication & Processing: Employing centerless grinding and CNC equipment to ensure tight diameter tolerances (h8/h9), excellent straightness, and smooth surface finish.

Rigorous Quality Testing (INSPECTIONS):

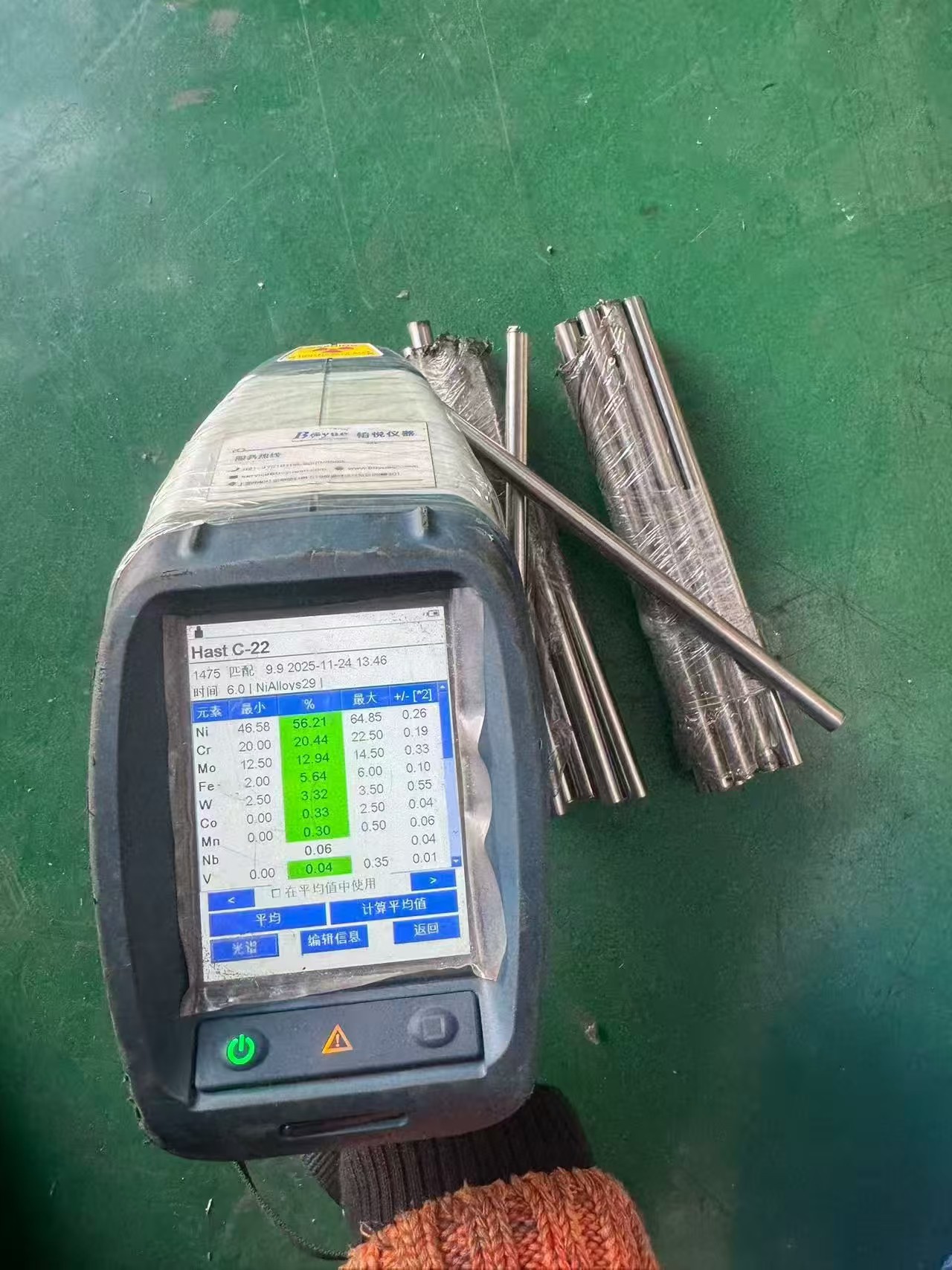

• Raw Material & In-Process Inspection: Chemical Composition Analysis (Spectro Test / PMI), and monitoring during forging processes.




• Geometric Dimensional Inspection: Visual Inspection, precise measurement of diameter, straightness, ovality, and surface defects.




• Non-Destructive Testing (NDT): 100% Ultrasonic Testing (UT per ASTM A388 / SEP 1921) for internal flaw detection.




• Mechanical Properties Testing: Tension Test (Elongation, Yield Strength, Tensile Strength), Hardness Test.




• Metallurgical & Corrosion Tests: Metallographic Analysis, Intergranular Corrosion Test (ASTM G28).

Traceability: Comprehensive Mill Test Certificates (MTC) and full material traceability guaranteed under ISO 9001:2015, with support for independent third-party certification (SGS, TUV, BV).
