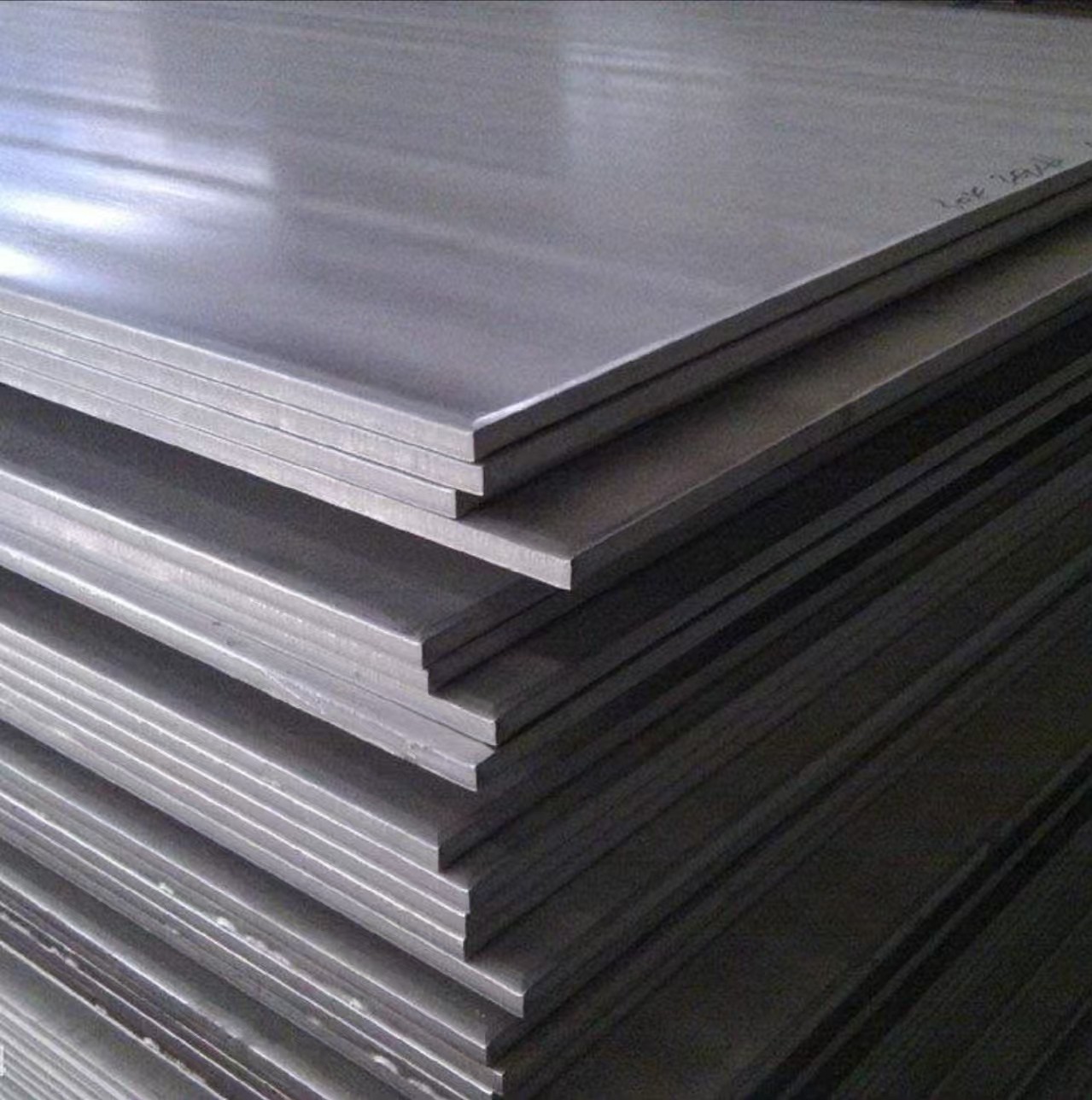

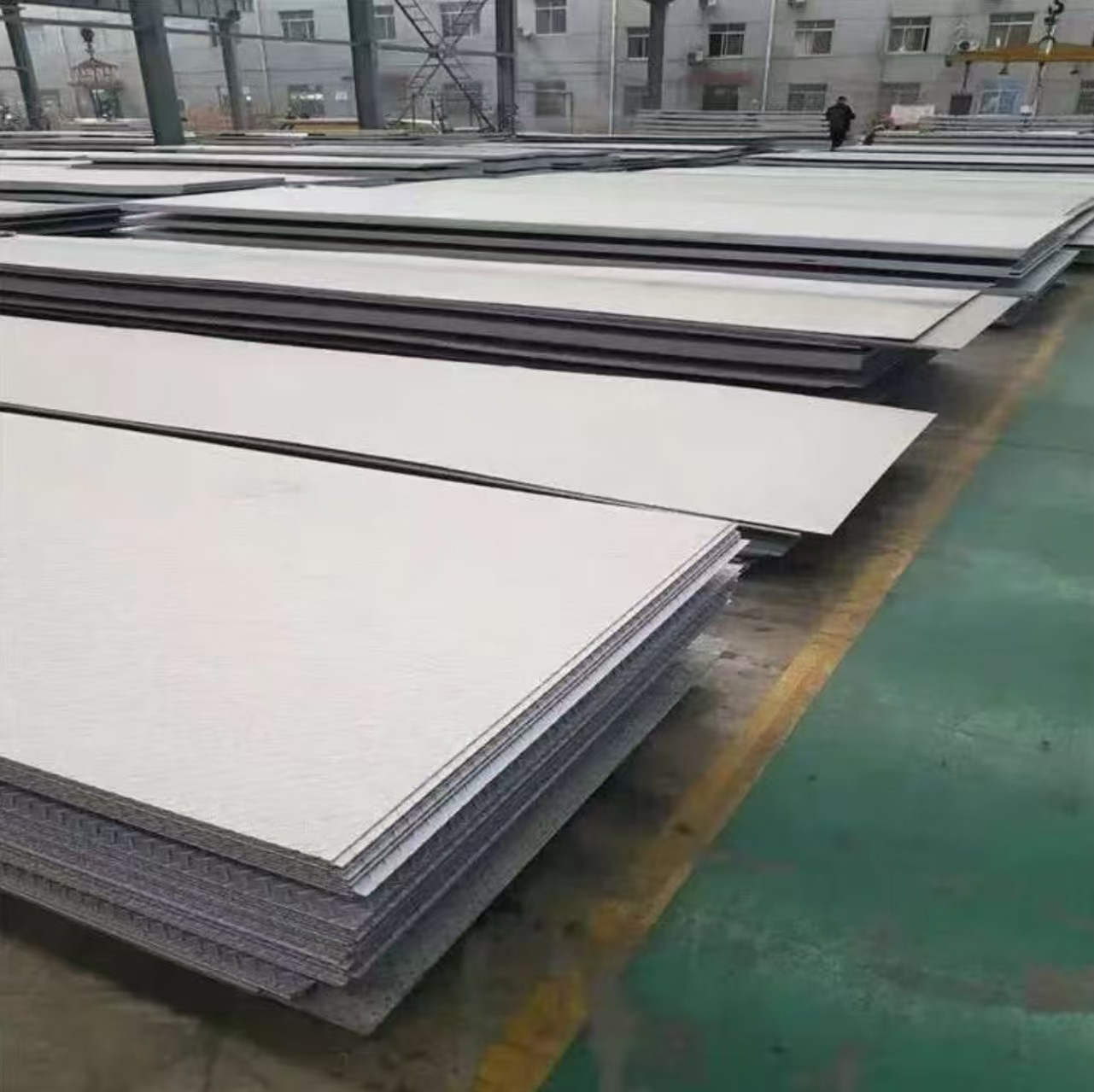

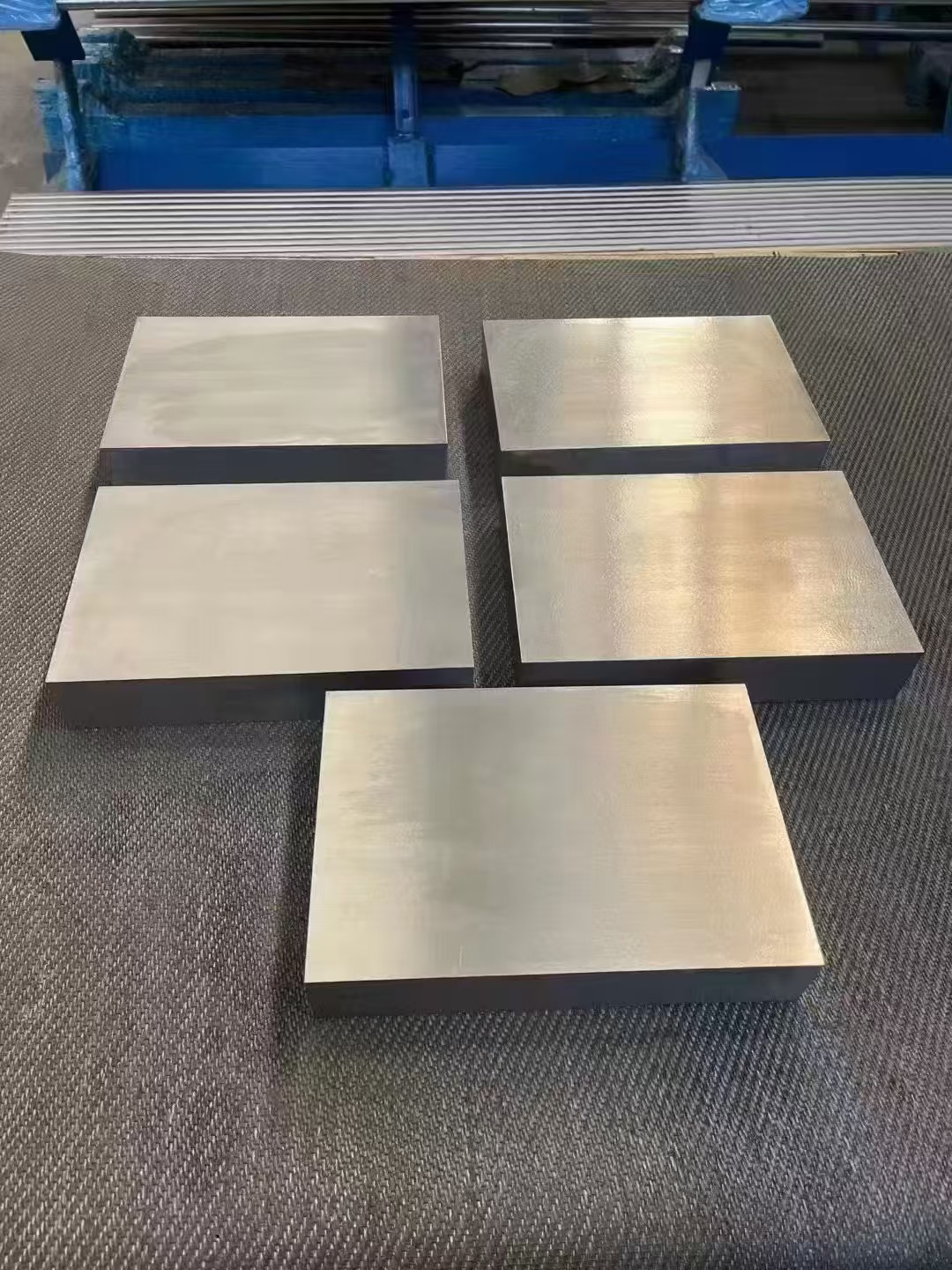

Inconel Plate & Sheet
Quality Assurance: Full material traceability per ISO 9001:2015. Every order includes a complete Mill Test Certificate (MTC) per EN 10204 3.1 or independent third-party certification.
Competitive Pricing: Leveraging factory manufacturing & stock advantages.
Customised: Tailor-made exclusive solutions for you and any need, whether personal or corporate.
Test samples: Free samples are available for testing.
Minimum order quantity: None, we respect every need of our users, as long as you need to.
CONTACT US
PRODUCT PARAMETERS
Material GradesInconel 600 (UNS N06600 / W.Nr. 2.4816), Inconel 601 (UNS N06601 / W.Nr. 2.4851), Inconel 625 (UNS N06625 / W.Nr. 2.4856), Inconel 718 (UNS N07718 / W.Nr. 2.4668), Inconel X-750 (UNS N07750 / W.Nr. 2.4669), etc.
Thickness

Cold Rolled Sheet: 0.5 mm – 4.0 mm

Hot Rolled Plate: 4.0 mm – 100 mm

Width & Length

Width: 1000 mm, 1220 mm, 1500 mm, 2000 mm (Up to 2500 mm)

Length: 2000 mm, 2440 mm, 3000 mm, 6000 mm, or custom cut-to-size

Manufacturing Standards

Primary Standard: ASTM B168 / ASME SB168, ASTM B443 / ASME SB443

Aerospace Standards (AMS): AMS 5540 (600), AMS 5599 (625), AMS 5596 (718)

International Standards: DIN 17750, ISO 6208, JIS G4902, GB/T 15007

Quality TraceabilityFull traceability guaranteed per ISO 9001:2015. Every batch includes a Mill Test Certificate (MTC) per EN 10204 3.1.
Shipping MethodFast air freight and cost-effective sea freight
ApplicationAerospace Burners & Engine Components, Chemical Tanks, Thermal Processing, Heat Exchangers, Nuclear Reactors, Marine Engineering
Specialty & CapabilityPrecision waterjet cutting, laser cutting, plasma cutting, shearing, flattening, and custom solution/aging heat treatment services.


Our Product Range & Parameters


Material Grades:


Inconel 600 / 601 Series: High oxidation and carburization resistance at elevated temperatures up to 1093°C (2000°F).


Inconel 625 Series: Exceptional resistance to severe pitting, crevice corrosion, and chloride-ion stress corrosion cracking (SCC).


Inconel 718 / X-750 Series: High-strength precipitation-hardenable alloys featuring superior tensile and creep-rupture strength for aerospace and gas turbines.


Manufacturing Standards:


ASTM / ASME Standards: ASTM B168 (Inconel 600), ASTM B443 (Inconel 625).


Aerospace Material Standards (AMS): AMS 5540 (600), AMS 5599 (625), AMS 5596 (718), AMS 5542 (X-750).


International Standards: DIN 17750, ISO 6208, JIS G4902, GB/T 15007.


Supply Specifications & Surface Finishes:


Cold Rolled Sheet (0.5mm - 4mm): 2B finish, Bright Annealed (BA), or No.4 polished.


Hot Rolled Plate (4mm - 100mm): Annealed & Pickled (NO.1 finish) or shot blasted.


Custom Processing: Waterjet, laser, and plasma precision cutting according to customer CAD drawings.



Manufacturing Process & Quality Control


VIM + ESR Melting: Vacuum Induction Melting + Electroslag Remelting for optimal microstructural cleanliness.


Rolling & Precision Heat Treatment: Controlled hot/cold rolling and solution annealing (or precipitation aging for Inconel 718).


Rigorous Inspections:


Chemical & Physical: Spectro Test, PMI, Tensile, Yield, Hardness, and High-Temp Rupturing.


Non-Destructive Testing (NDT): 100% Ultrasonic Testing (UT) for heavy plates per ASTM A578 / SEP 1921.


Dimensions: Thickness tolerance, flatness, diagonal accuracy, and surface quality checks.


Traceability: Full material traceability per ISO 9001:2015 with EN 10204 3.1 MTC. Third-party inspection (SGS/TUV) supported.




FAQ

Why Choose Our Inconel Plates & Sheets?


Extensive Experience: Years of expertise supplying Inconel plate materials for aerospace, chemical reactors, heat exchangers, and furnace equipment.


ISO 9001:2015 Certified: Strict quality system management from raw slab rolling to precise cut-to-size delivery.


Quality Assurance: Accompanied by Mill Test Certificates (MTC per EN 10204 3.1) and NDT test reports.


Competitive Pricing: Direct factory supply with strategic raw material stocks.


Customized Processing: Custom sizes, shapes, precision cutting, and specialized thermal processing.


No MOQ Limit & Samples: Flexible ordering with free samples available (shipping cost by buyer).
