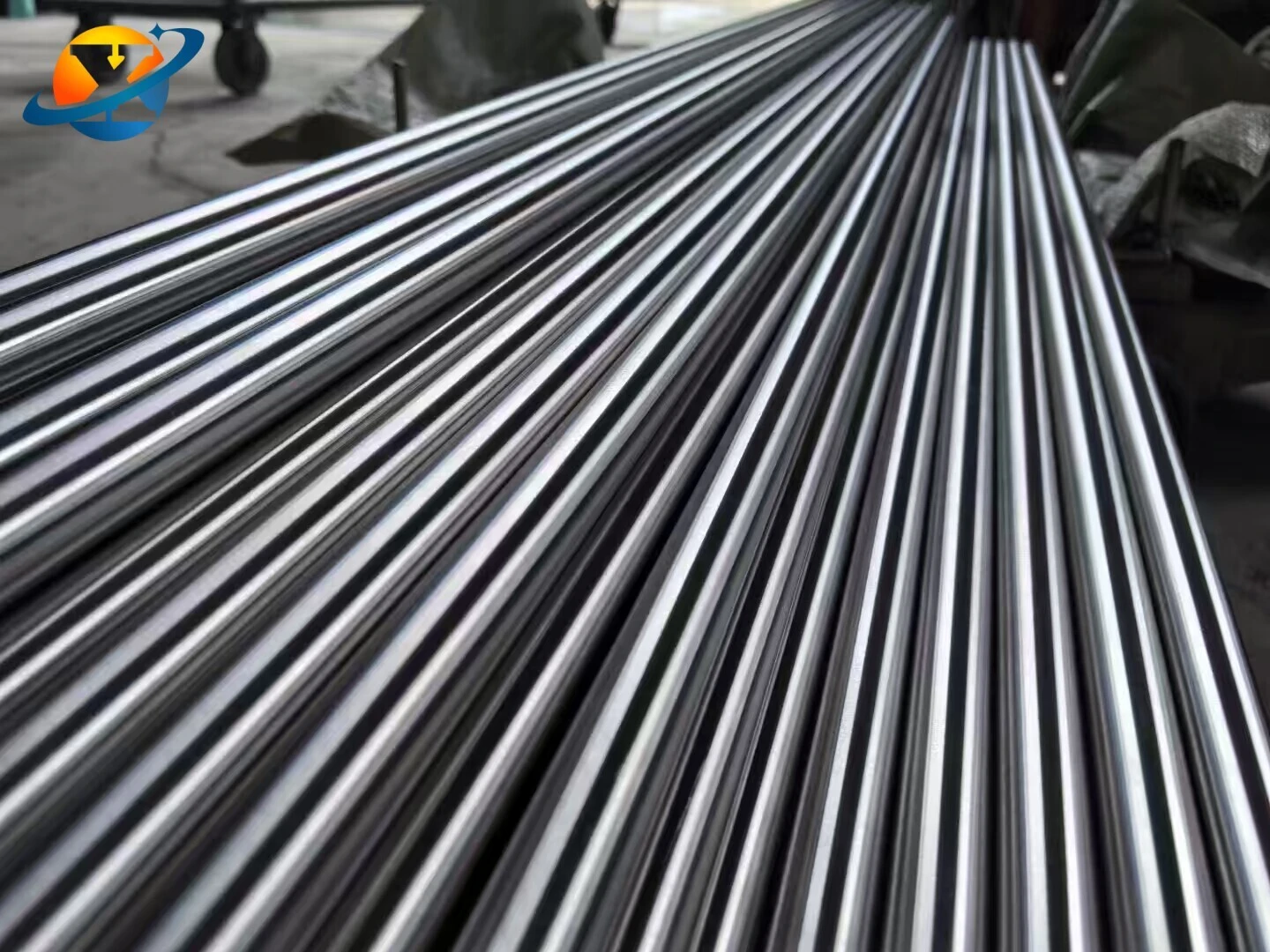

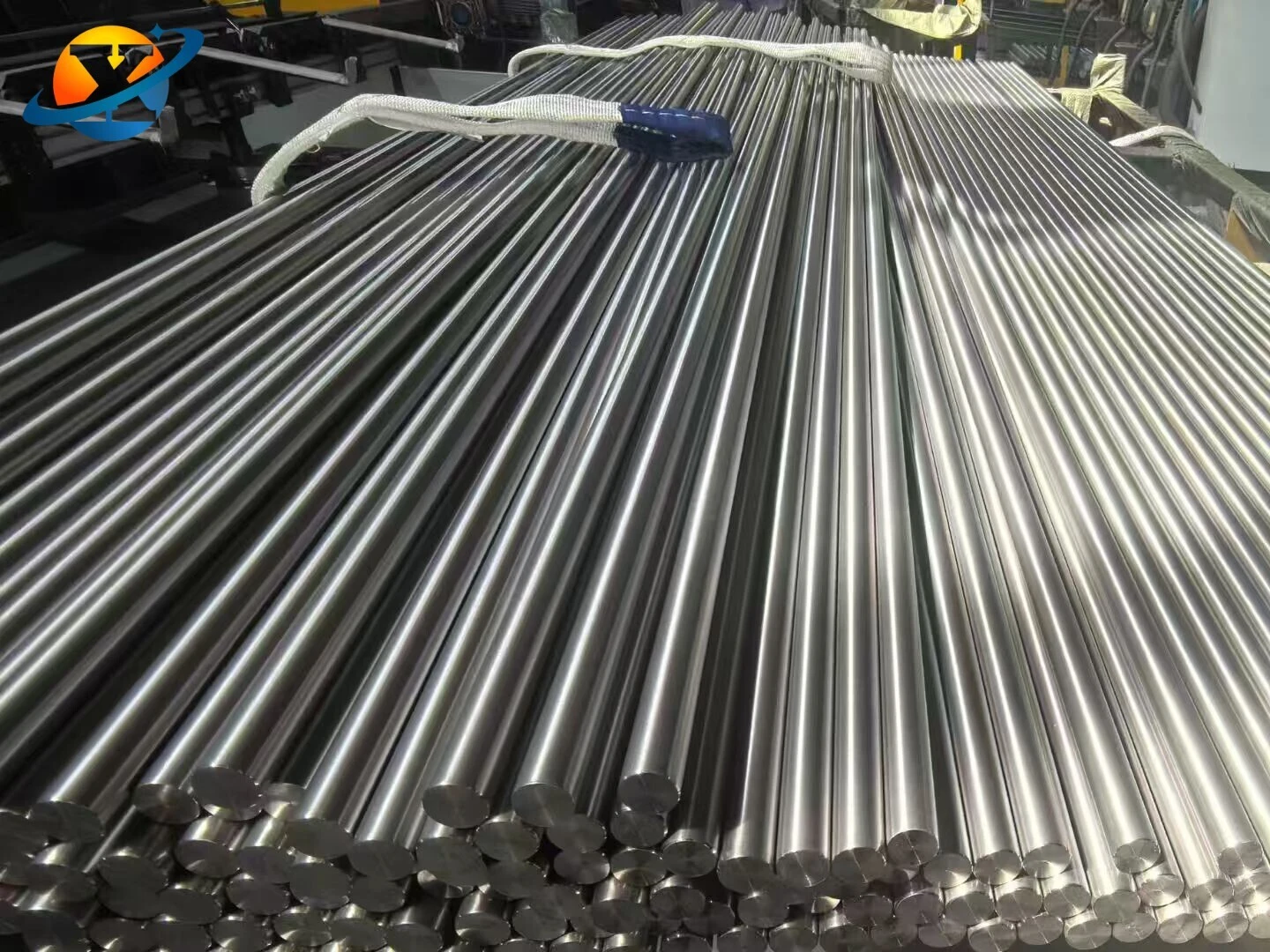

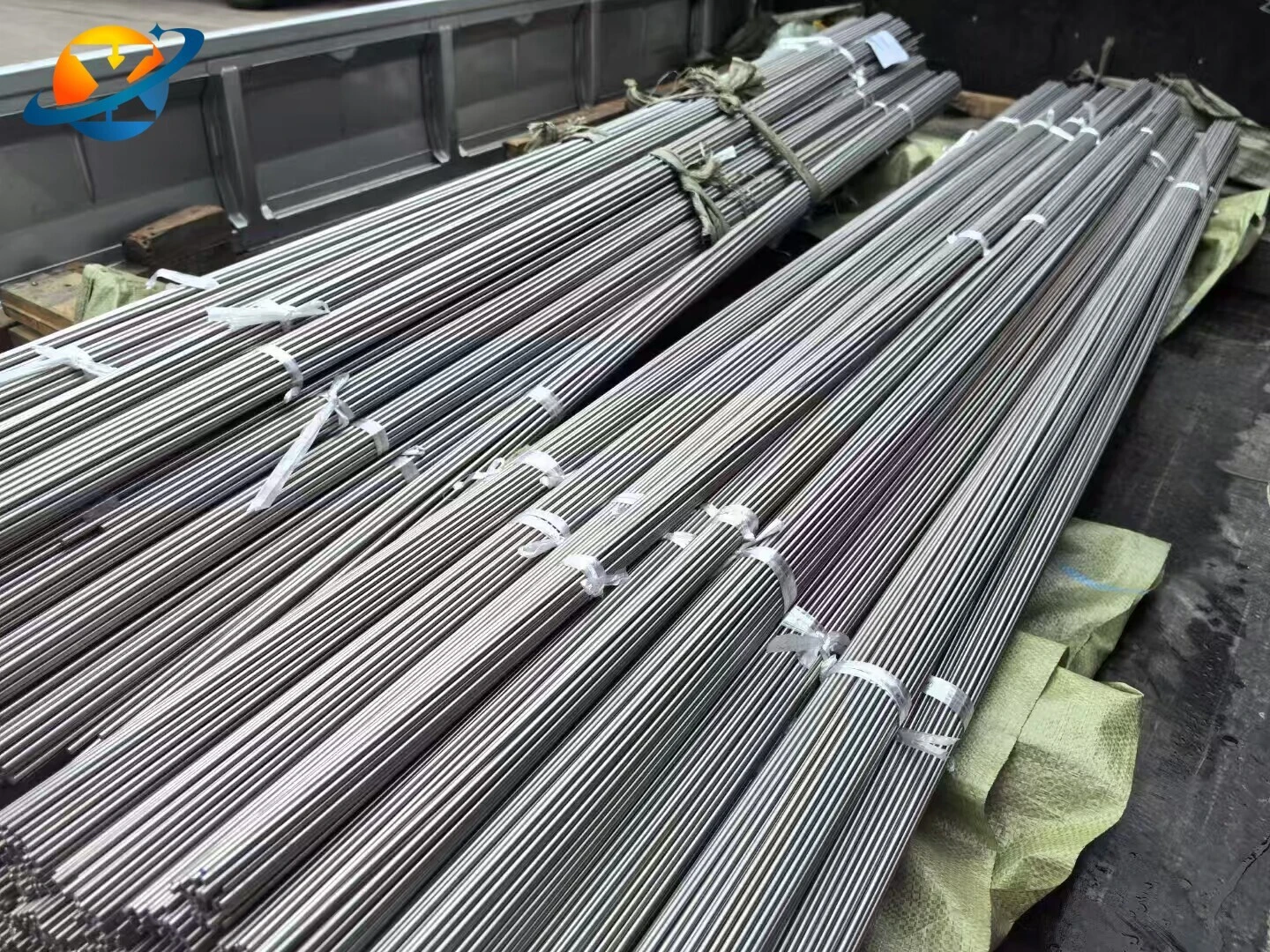

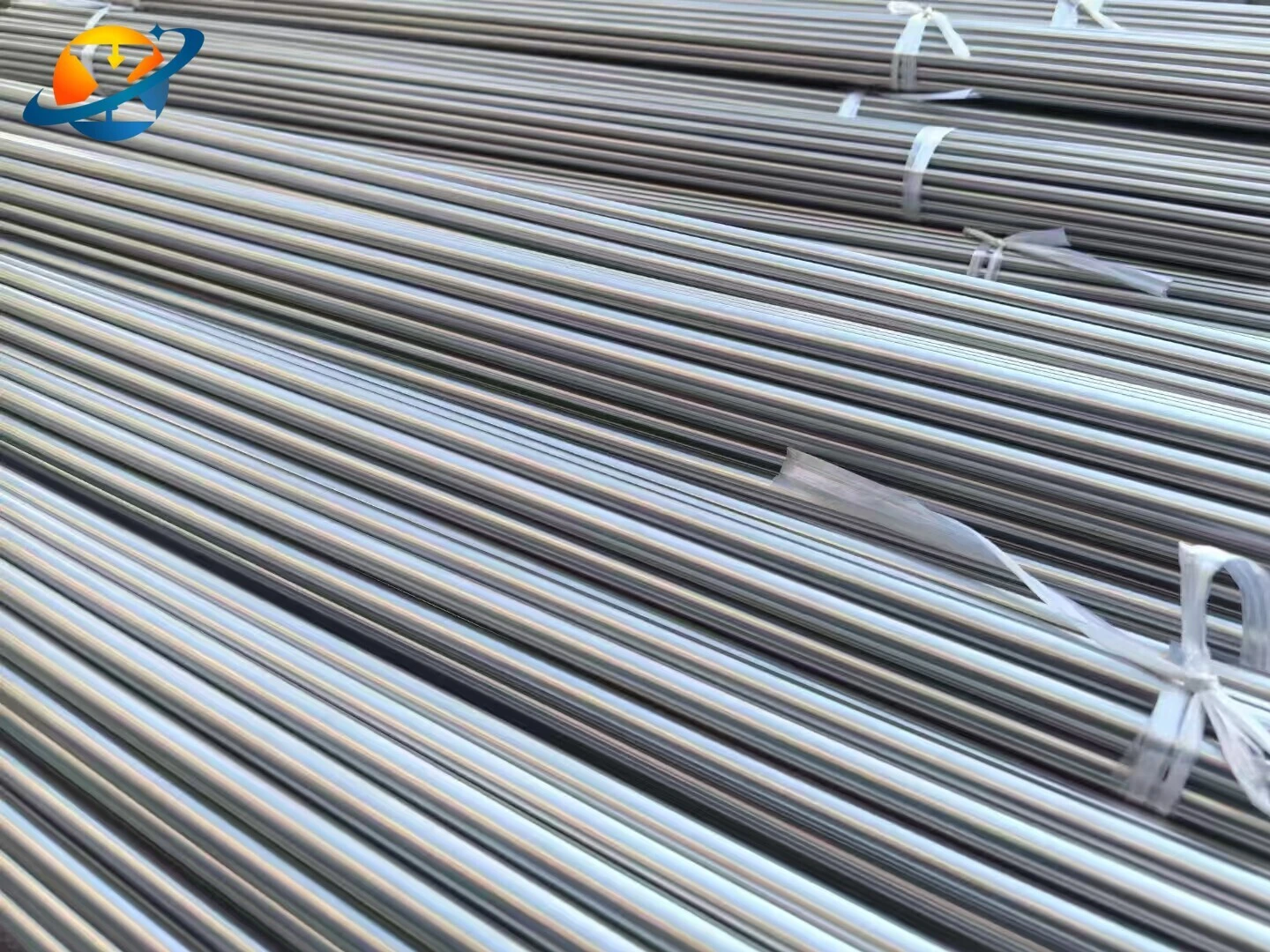

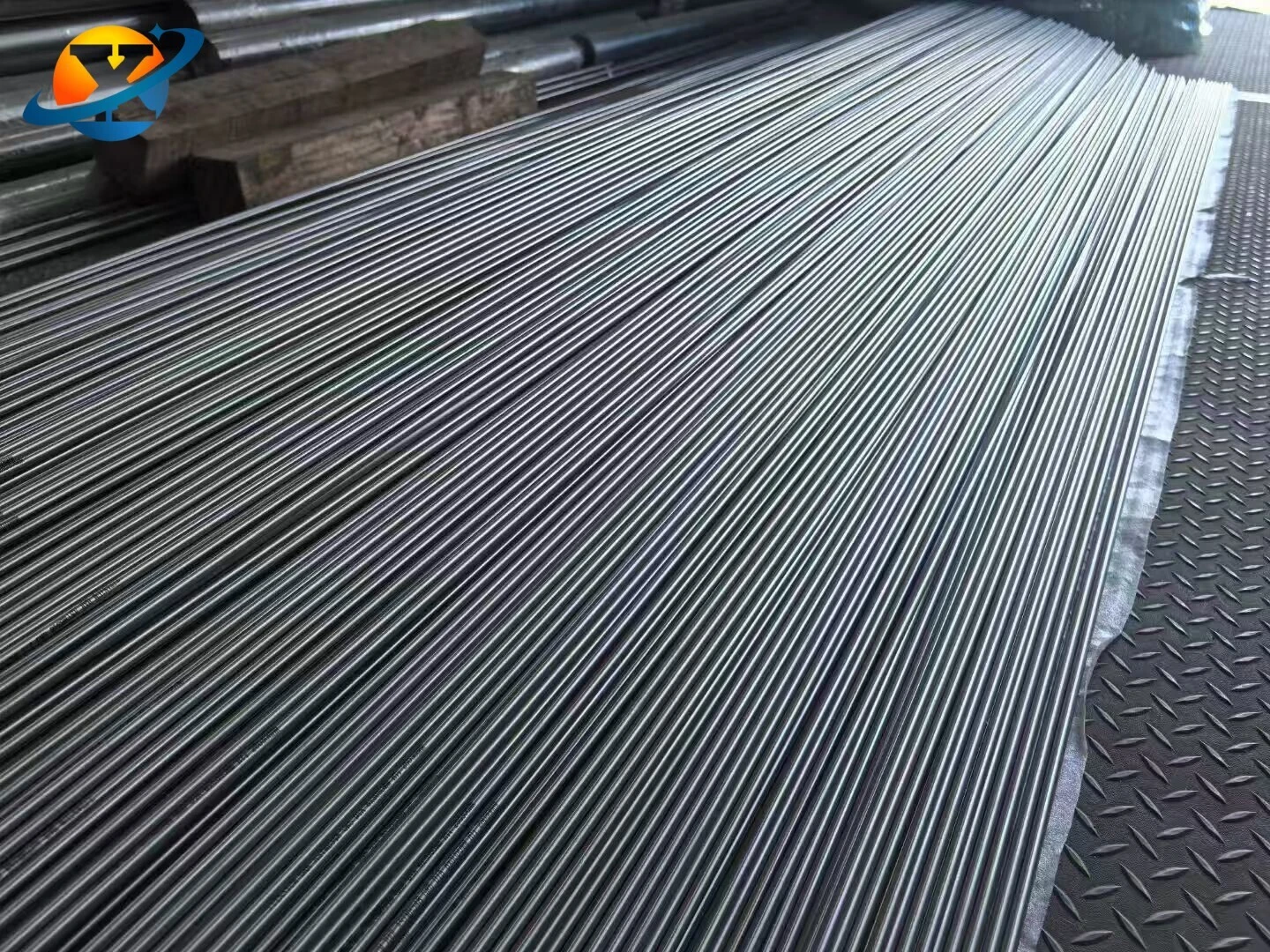

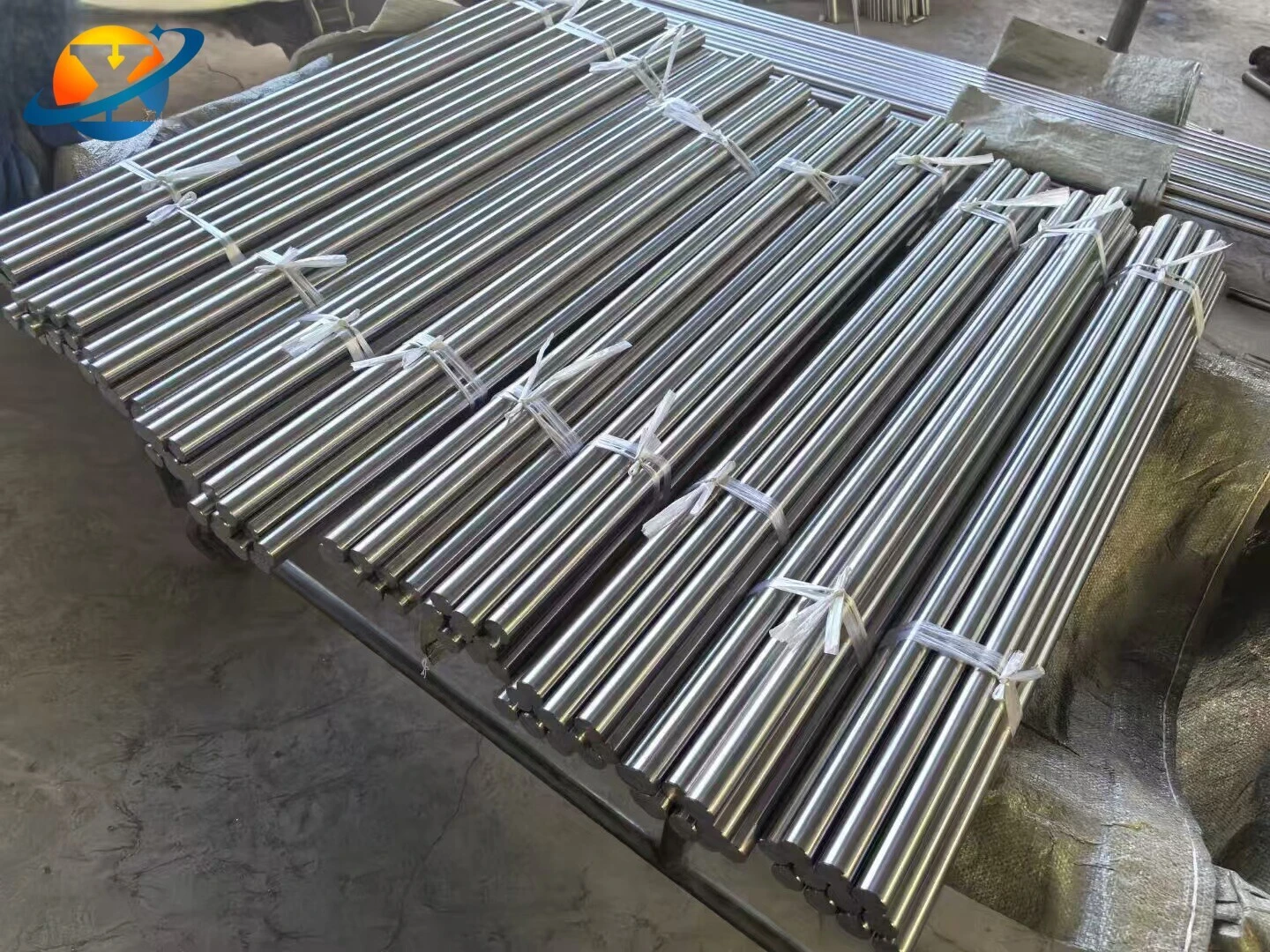

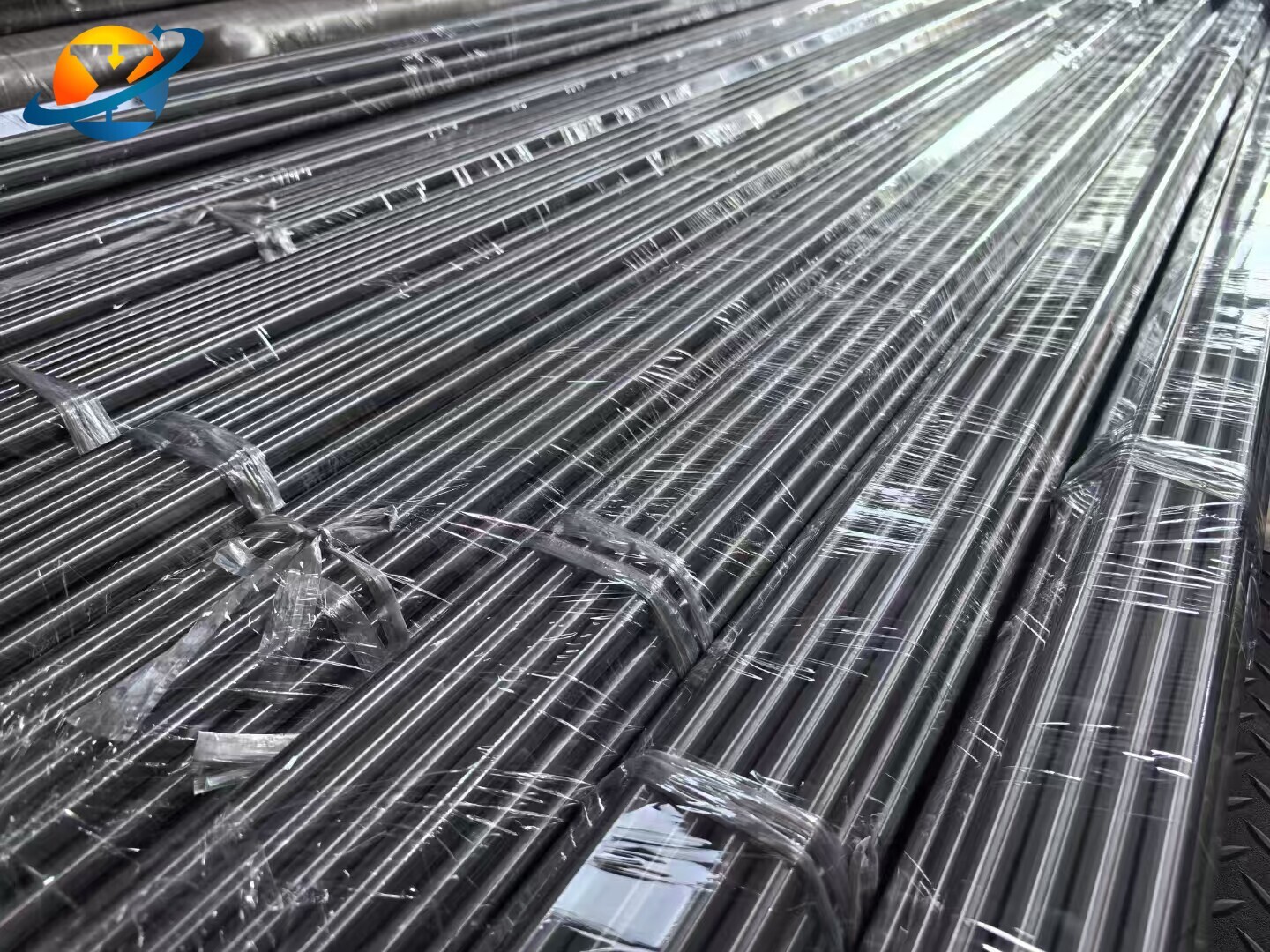

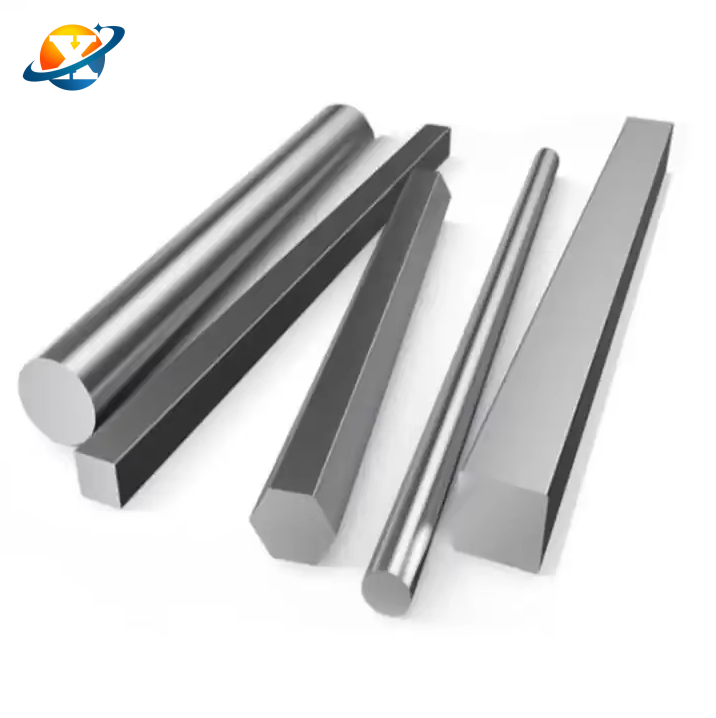

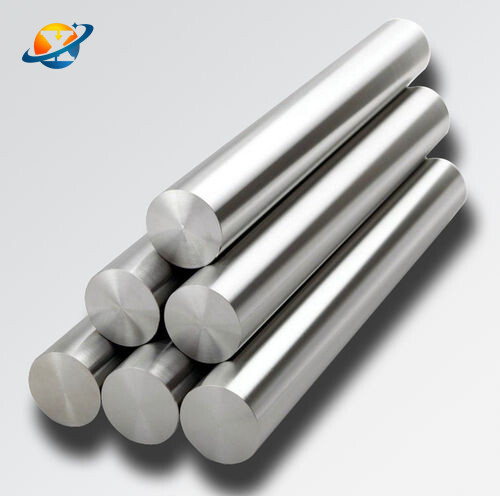

Parameter of Titanium Bar / Rod

Product Series & Specifications

Material Grade:

Commercially Pure (CP) Titanium Series: Gr1 (TA1), Gr2 (TA2), Gr3 (TA3), Gr4 (TA4) - Possess high strength, excellent corrosion resistance, and good workability.

Titanium Alloy Series: Gr5 (TC4, Ti-6Al-4V, the most commonly used high-strength alloy), Gr7, Gr9, Gr11, Gr12, Gr23(Biocompatible Ti-6Al-4V ELI), etc. - Offer higher strength, high-temperature resistance, and fatigue resistance.

Size Range:

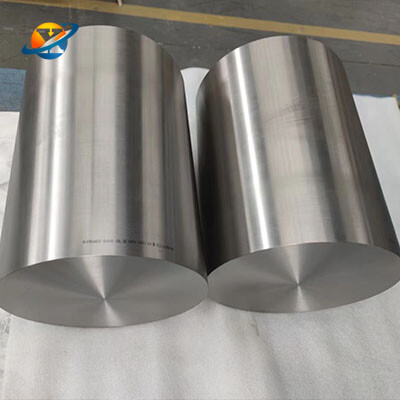

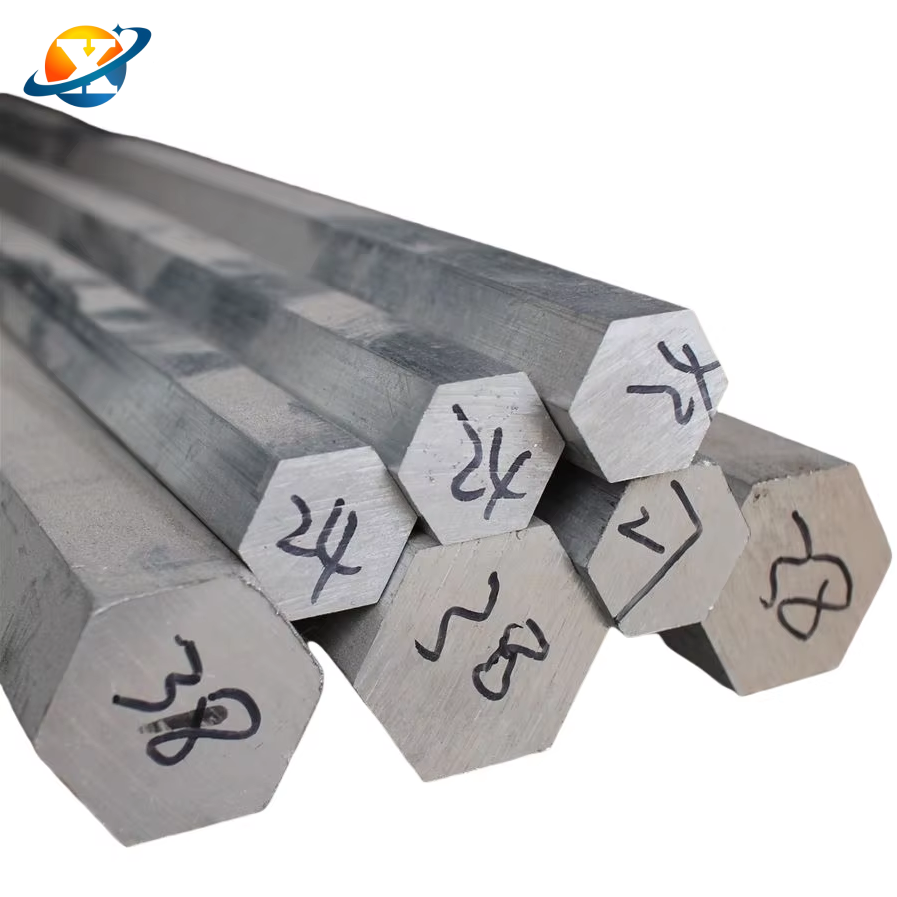

Diameter/Side Length: Available in a range from φ3mm to φ500mm.

Length: Standard lengths up to L≤12000mm (12 meters); customizable as required.

Applicable Standards:

Primary Standard:

• ASTM B348.

Medical Standards:

• ASTM F136 (Wrought Ti-6Al-4V ELI Alloy Bars for Surgical Implants).

• ASTM F67 (Unalloyed Titanium Bars for Surgical Implants).

Aerospace Standards:

• AMS 4928 (Ti-6Al-4V Alloy Bars/Forgings, Annealed),

• AMS 4965 (Ti-6Al-4V Bars, Solution Heat Treated and Aged).

Other International General Standards: GB/T (China), JIS (Japan), DIN (Germany), GOST (Russia), ISO, etc.

Surface Finish: Available in black forged (Black Bar), machined (Turned), ground, polished, pickled, and other surface conditions to meet specific application requirements for dimensional accuracy, surface roughness, or appearance.

Manufacturing Process & Quality Control

High-Quality Raw Materials: Utilizing high-purity titanium sponge and alloy elements, produced through advanced vacuum melting technologies (e.g., Vacuum Arc Remelting - VAR) to create high-purity titanium ingots, ensuring the quality of the bar's material source.

Precision Bar Forming: Subsequently, titanium bars/rods are manufactured through rigorously controlled forging, hot rolling, and precision cold drawing and/or cold rolling processes, optimizing grain structure and ensuring their density, uniformity, and excellent mechanical properties.

Precision Heat Treatment: Implementing precise annealing, solution treatment, and/or aging treatments to relieve processing stress, optimize grain structure, and ensure the material's ductility, strength, and long-term stability in use.

High-Precision Machining: Offering turning, grinding, polishing, and other machining services to ensure precise bar dimensions and surface finish, meeting high-precision application demands.

Rigorous Quality Testing (INSPECTIONS):

Raw Material Inspection: Chemical Composition Analysis (Spectro Test).

Internal Flaw Detection: Ultrasonic Testing (UT) and/or Eddy Current Testing (ET) are performed on finished bars to ensure the absence of internal cracks, inclusions, porosity, and other defects.

Geometric Dimensions & Visual Inspection: Precise measurement of diameter, length, straightness, ovality, and high-precision visual and automated inspection for surface defects (e.g., scratches, indentations).

Mechanical Properties Testing: Tensile Test (Elongation, Yield Strength, Tensile Strength), Hardness Test, Impact Test, Bend Test, etc.

Metallographic Analysis: Evaluation of grain size and microstructure to ensure conformity with standards and final application requirements.

Corrosion Testing: Corrosion tests in specific corrosive media (e.g., ASTM G28, G48) are performed to verify durability in harsh chemical environments.

Traceability: Comprehensive material reports are provided, ensuring complete traceability from raw material to final bar/rod, with support for independent third-party certification.
