Pipes and Tubes titanium Parameter

Grade	GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR11, GR12, GR23, etc.
BT	BT1-00, BT1-0, BT1-2, BT6, BT3-1, ПТ-3В, BT6C, BT25, ВТ25У, etc.
Welded Pipe Sizes:	OD(90-1020mm)/（approximately 3.54" ~ 40.16"）*WT(0.5-50.0mm)/（approximately 0.02"-1.97"）*L(as required) or customizable
Seamless Pipe Sizes:	OD (3 – 520 mm)/（approximately  0.12" ~ 20.47"）*WT(0.4 – 30 mm)/（approximately 0.016" ~ 1.18"）*L(as required) or customizable
Standard	ASTM B337, ASTM B338, ASTM B861, ASTM B862, GB/T 2924-2007, GB/T3625-2007
	GOST 22897-86, GOST 24890-81, GOST 21945-76
Test requirement	Eddy Current Test, Hydrostatic Test, UT, Penetrant Test, Air underwater pressure Test, PMI Test,Spectro Test, Intergranular Corrosion Test, Sharpy Impact Test, Hardness Test, Tension Test(Elongation, Yield Strength, Tensile Strength), Flarring Test etc.
Application	Industrial, Condenser, Seawater desalination, Fluid transportation,Medical equipment. etc.
Ends	PE/Plain Ends, BE/Beveled Ends
Quality Traceability	Full traceability guaranteed per ISO 9001:2015. Every batch includes a Mill Test Certificate (MTC).
Application	Aerospace, Marine, Medical, Electronics, Chemicals

Product Series & Specifications

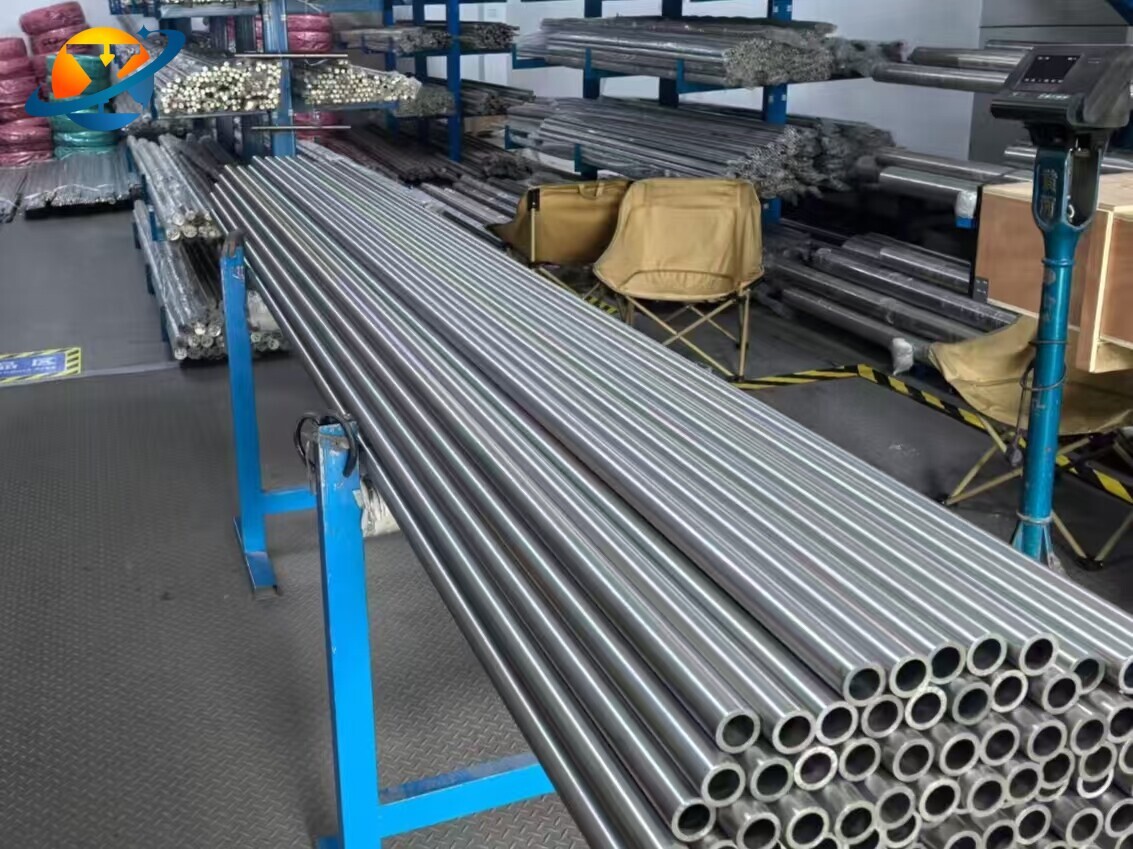

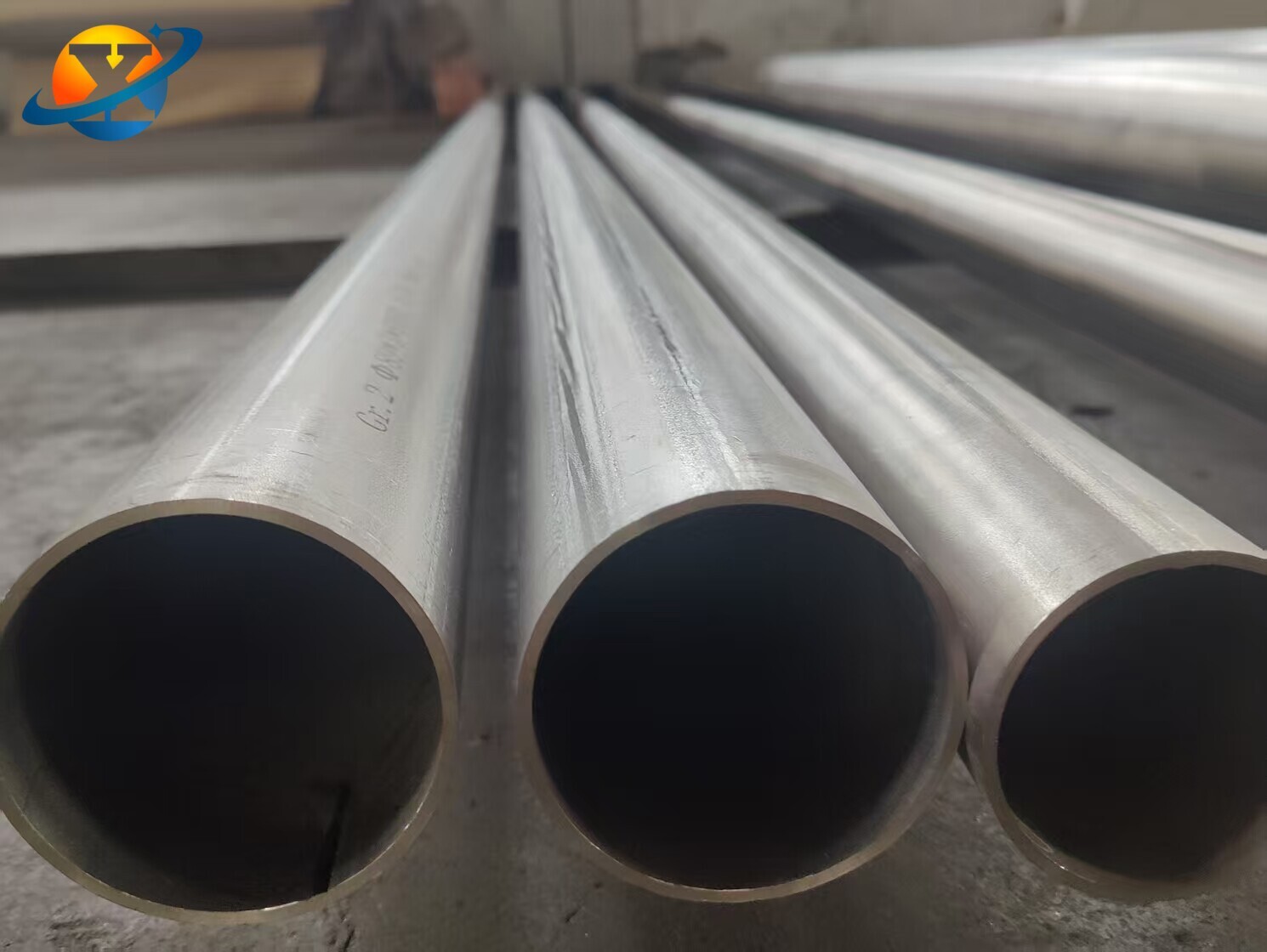

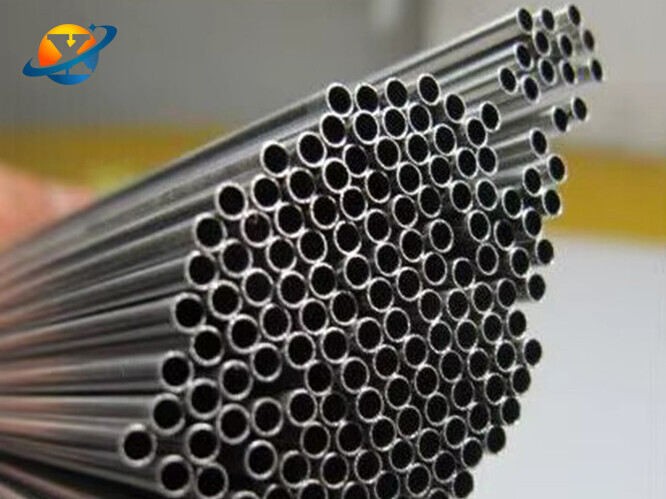

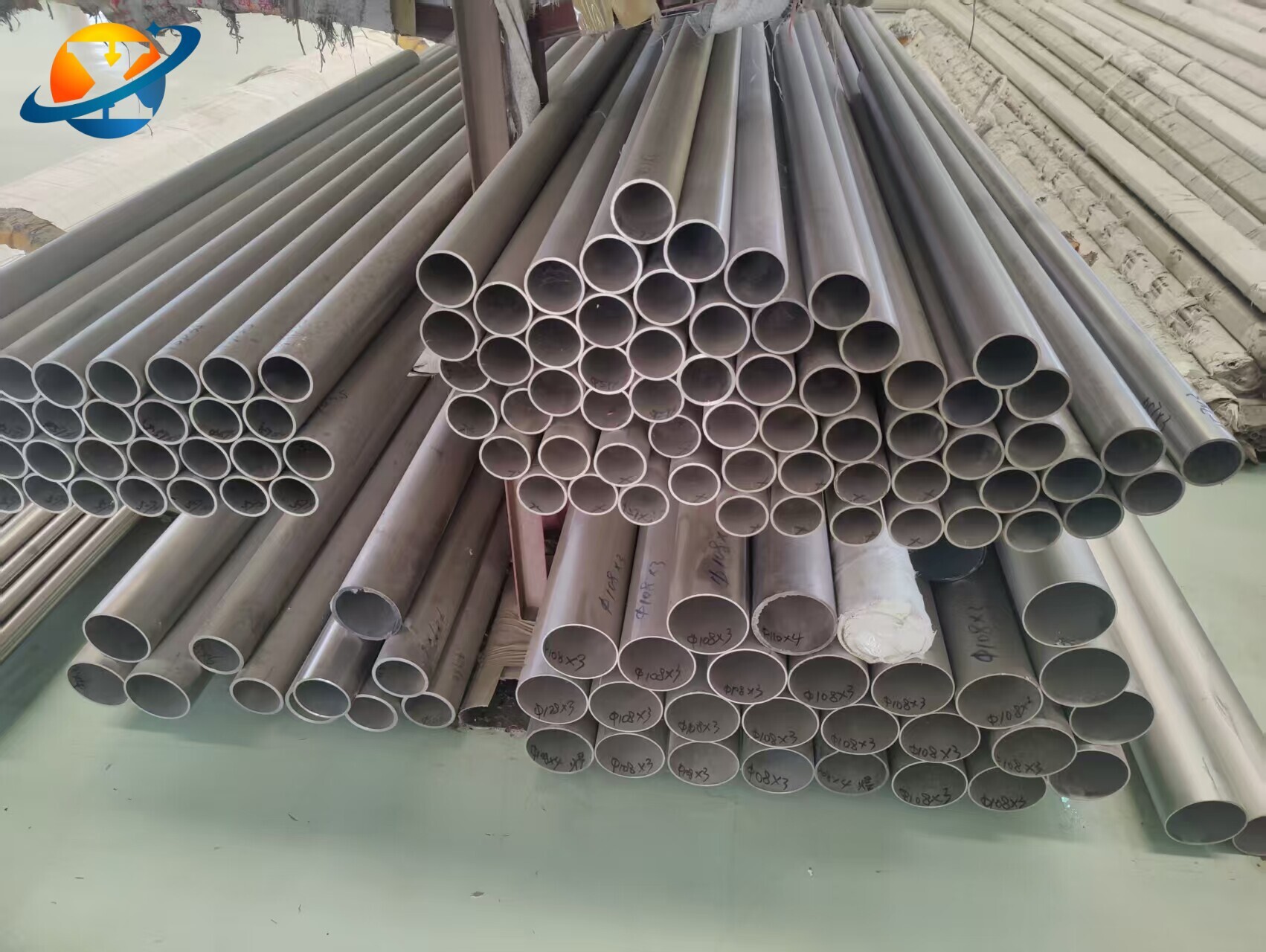

Product Type: Seamless Titanium Pipes/Tubes and Welded Titanium Pipes/Tubes.

Material Grades:

Commercially Pure (CP) Titanium Series: Gr1 / BT1-00, Gr2/ BT1-0, Gr3/ BT1-2, Gr4 (offering high corrosion resistance, good formability, and weldability, suitable for chemical processing, desalination, and medical fields).

Titanium Alloy Series: Gr5/ BT6 (Ti-6Al-4V, known for high strength and lightweight properties), Gr7 (enhanced crevice corrosion resistance), Gr9/ BT3-1 (Ti-3Al-2.5V, combining good strength with formability), Gr11, Gr12/ ПТ-3В (excellent resistance to acids and reducing media), Gr23/ BT6C (Biocompatible Ti-6Al-4V ELI), etc.

Size Range:

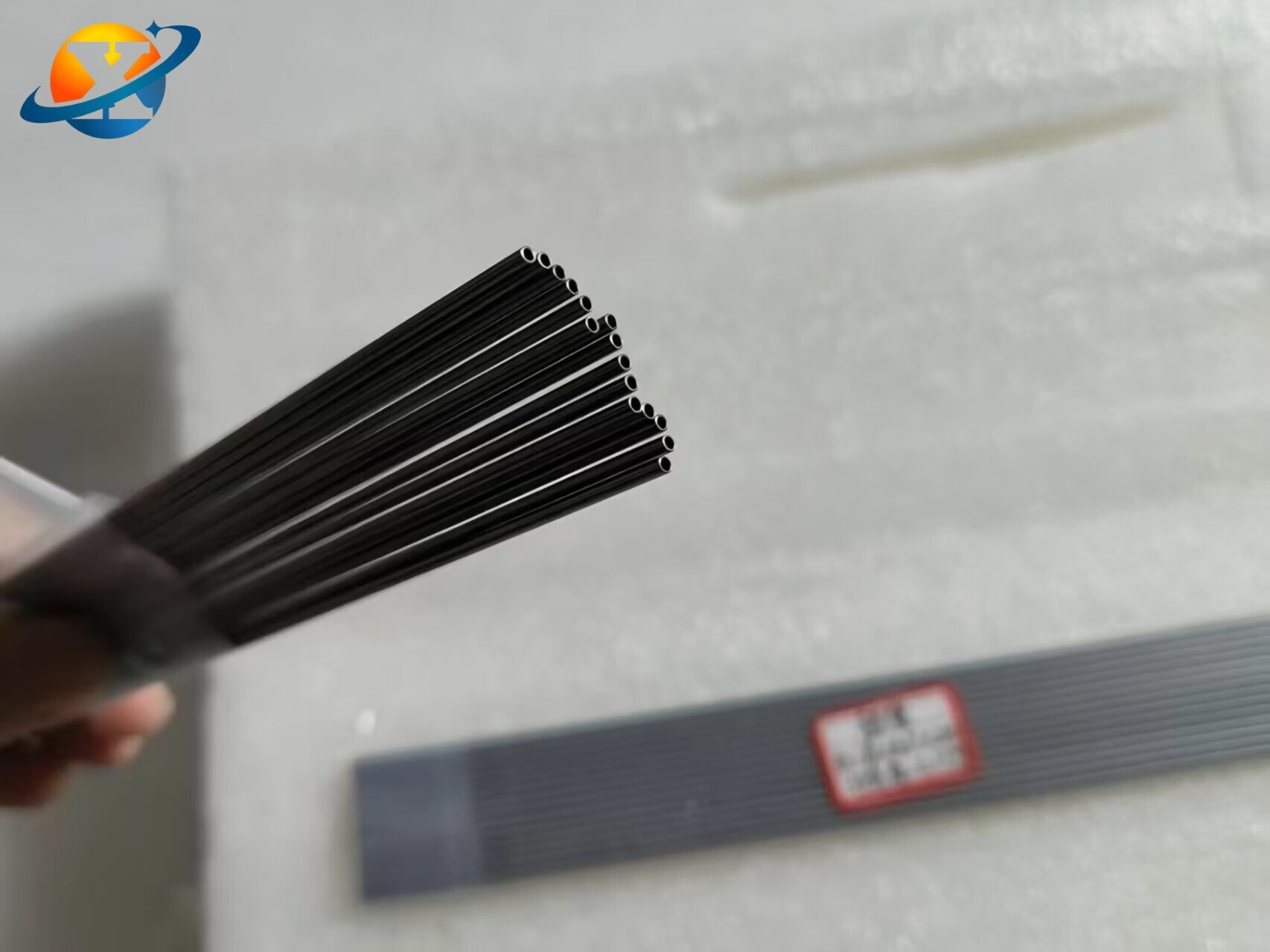

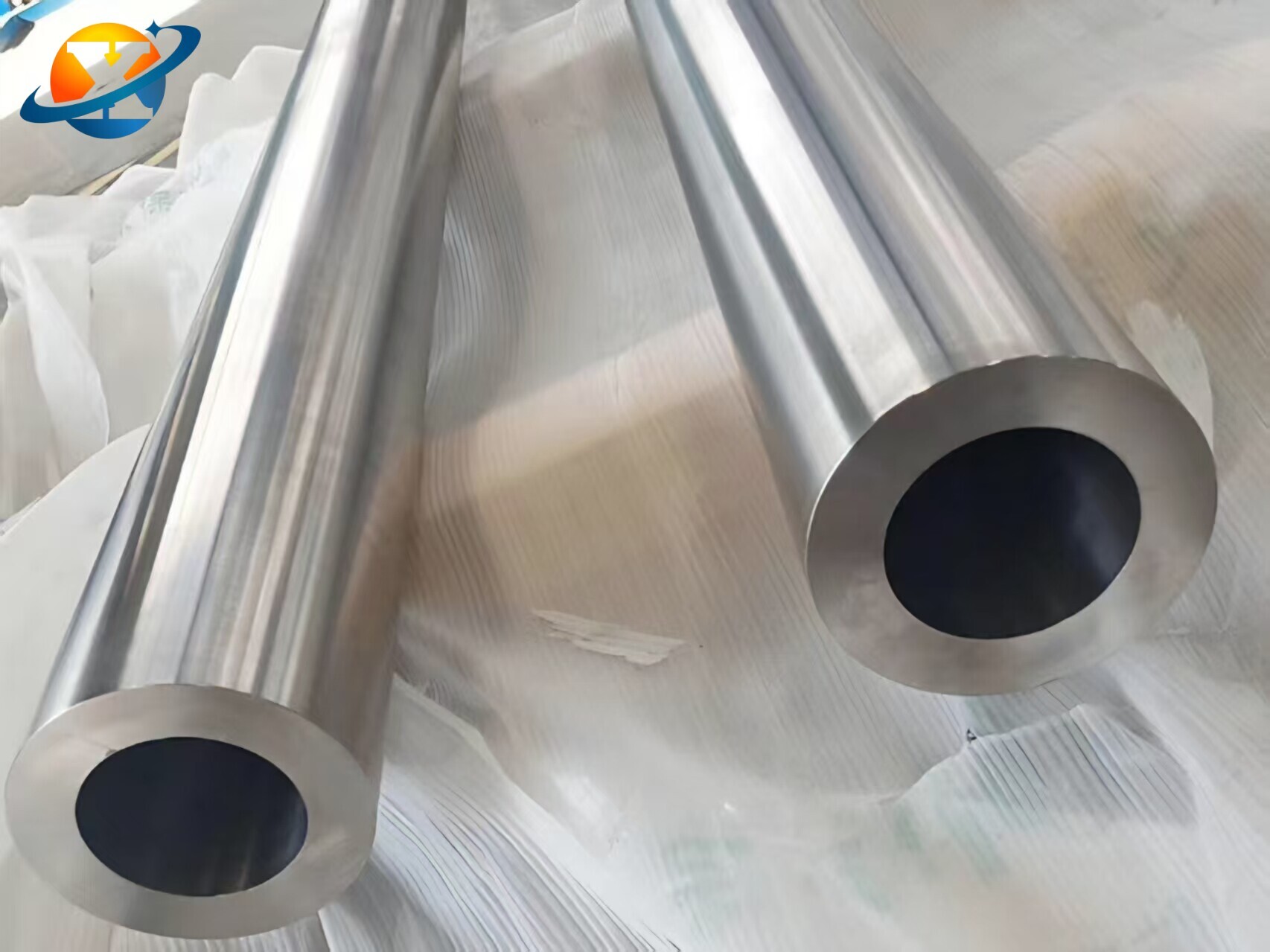

Seamless Pipes/Tubes:

Outer Diameter (OD): 3mm – 520mm (approx. 0.12" ~ 20.47")

Wall Thickness (WT): 0.4mm – 30mm (approx. 0.016" ~ 1.18")

Length (L): Standard lengths up to 18000 mm (<18 meters); custom lengths supported.

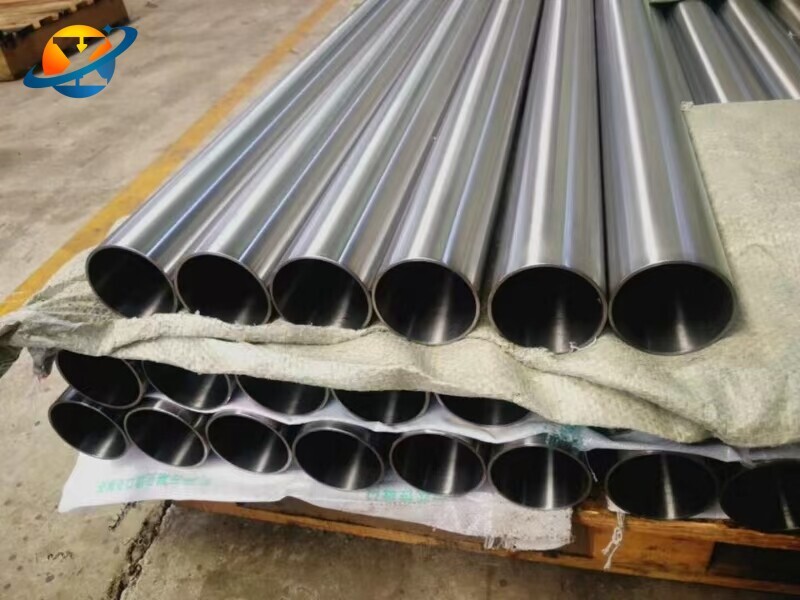

Welded Pipes/Tubes:

Outer Diameter (OD): 90mm – 1020mm (approx. 3.54" ~ 40.16")

Wall Thickness (WT): 0.5mm – 50mm (approx. 0.02" ~ 1.97")

Length (L): Standard lengths up to 15000 mm (<15 meters); custom lengths supported.

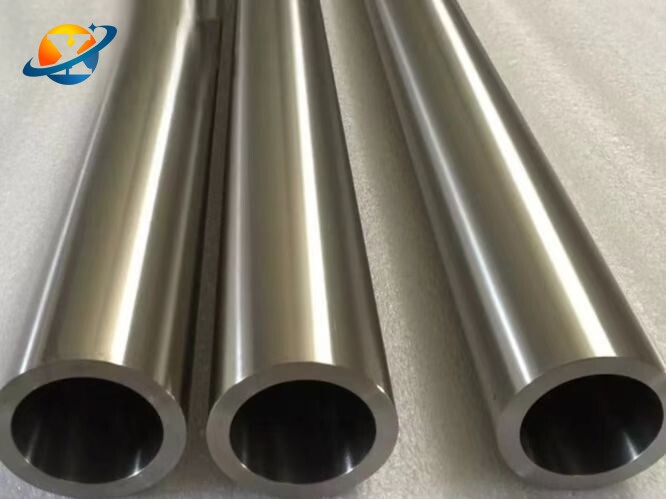

Surface Finish: Pickled, bright annealed, polished, sandblasted, etc.

End Finish: Plain Ends (PE), Beveled Ends (BE).

Manufacturing Process & Quality Control

Advanced Manufacturing Processes:

Seamless Pipes: Produced using advanced extrusion, cold rolling, or cold drawing processes, ensuring precise dimensions, uniform wall thickness, and excellent mechanical properties.

Welded Pipes: Manufactured using high-quality TIG/GTAW welding processes, ensuring weld strength matches the parent material, accompanied by rigorous weld inspection and heat treatment to relieve stress.

Rigorous Quality Testing (Test Requirements):

Raw Material Inspection: Chemical Composition Analysis (Spectro Test).

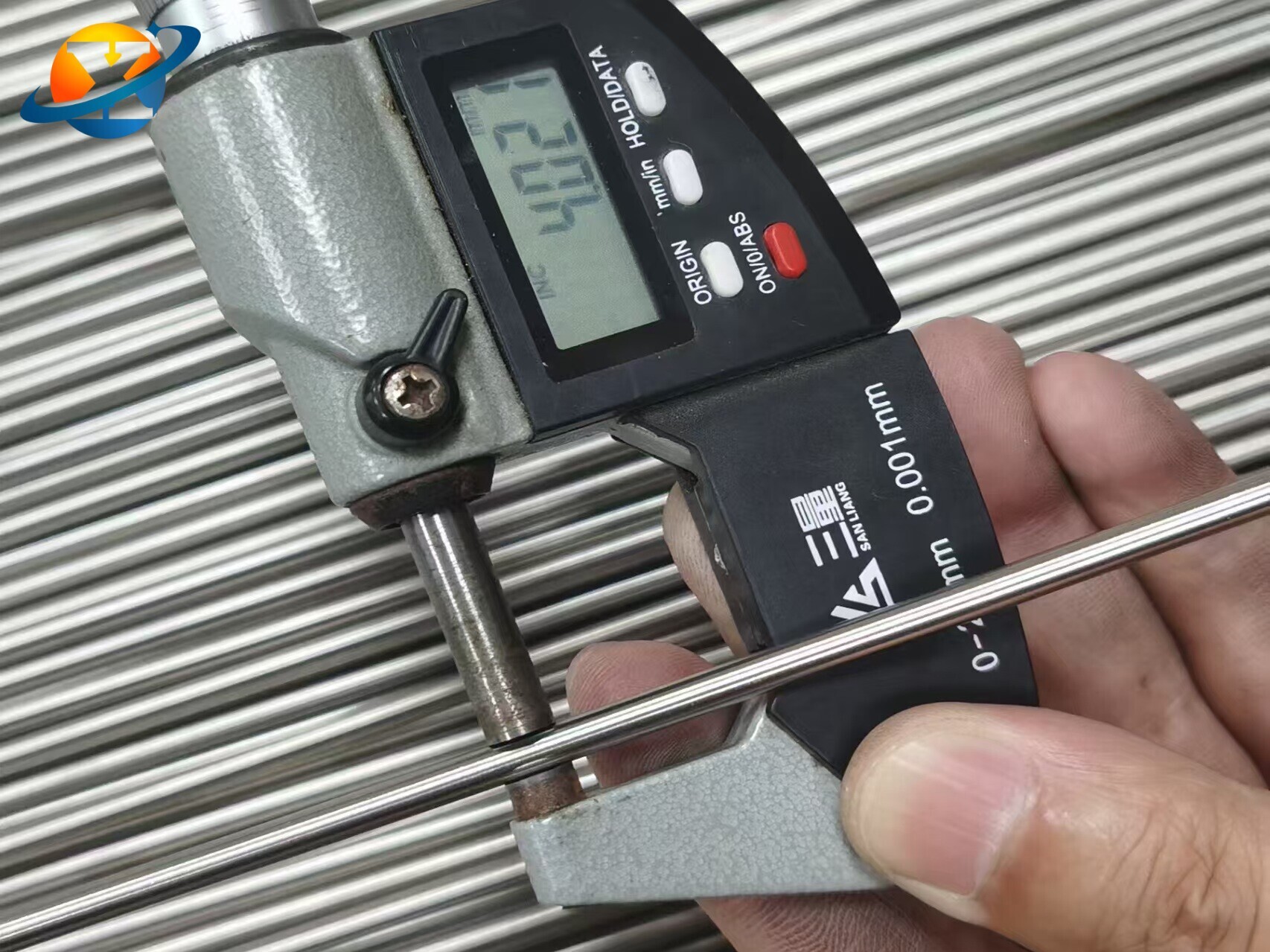

Dimensional & Visual Inspection: Dimension Inspection, Visual Inspection.

Non-Destructive Testing (NDT): Eddy Current Test, Ultrasonic Testing (UT), Radiographic Testing (RT - for welded pipes).

Pressure Testing: Hydrostatic Test, Pneumatic Test (Air underwater pressure Test).

Mechanical Properties Testing: Tension Test (Elongation, Yield Strength, Tensile Strength), Impact Test (Sharpy Impact Test), Hardness Test, Flattening Test, Flaring Test.

Special Tests: Intergranular Corrosion Test (for specific alloys and applications), PMI (Positive Material Identification).

Traceability: Comprehensive Material Reports and traceability are provided, with support for independent third-party certification.

Titanium Pipe / Tube Selection Guide

Seamless Pipes vs. Welded Pipes:

Seamless Titanium Pipes: Offer better wall thickness uniformity and higher pressure resistance, suitable for critical applications requiring extreme integrity, strength, and pressure (e.g., aerospace, oil & gas, high-pressure heat exchangers).

Welded Titanium Pipes: Generally more cost-effective, offer more size and shape options, suitable for applications with moderate strength requirements, focusing on economy and larger diameters (e.g., chemical equipment, desalination, large-scale piping systems).

Our team is happy to provide professional guidance based on your specific application, budget, and performance needs.
