Grade	GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR11, GR12, GR23, etc.
	BT1-00,BT1-0,BT6,NT-7M,NT-3B,BT6C
Aperture	0.1–40 mm (expanded)tolerance ±0.1–0.5 mm, 10–250 mesh (woven), custom patterns available
Wire Diameter / Thickness	0.1–2.0 mm (woven mesh), 0.3–4 mm thickness (expanded/perforated)
Standards	ASTM B265, ASTM F67, ASTM F136, ASTM B348  ；  GB/T 3621, GB/T 13810  ；  ГОСТ / ОСТ specifications upon request
Surface Treatments	Acid washed, sandblasted, polished, pickled, platinized (Pt-coated)
Test Requirements	PMI test, chemical composition, strand tensile test, thickness tolerance, flattening test, corrosion test (ASTM G36 / G34), mesh opening inspection, surface quality inspection.

High-Quality Titanium Mesh: Factory-Direct Prices, Full Customization, Fast Global Delivery

As an ISO 9001:2015 certified manufacturer, we supply a comprehensive range of titanium mesh products—expanded, woven, perforated, and specialty coatings such as platinum—to meet demanding applications in filtration, chemical processing, marine engineering, aerospace, medical implants, battery industries, and electrolysis systems.

Our mission is to deliver verifiable quality, global-ready logistics, and factory pricing that helps you reduce procurement cost while maintaining strict quality assurance.

Our Advantage: Why Global Buyers Choose Our Titanium Mesh

Factory-Direct Pricing & Better Value

Purchase titanium mesh directly from our production facility and avoid distributor markups.
We offer competitive prices for both CP titanium and high-performance alloys, including Pt-coated mesh for electrochemical applications.

Verifiable Quality with Full Traceability

Every batch undergoes strict inspection:

• Dimensional accuracy of mesh openings

• Tensile strength and elongation

• PMI (Positive Material Identification)

• Corrosion resistance tests

• Surface and coating thickness inspection (for platinized mesh)

All shipments include a full MTC and support third-party testing upon request.

Agile Supply with No MOQ

Whether you need one sample sheet or a full container, we support all order sizes.
Fast air freight, stock availability for common specs, and rapid production for custom orders ensure on-time delivery.

Wide Range & Technical Expertise

We supply the full range of titanium mesh types:

• Expanded titanium mesh (popular for filtration, electrolysis, marine applications)

• Titanium wire cloth for high-precision filtration

• Titanium perforated plates for structural and industrial use

• Medical-grade titanium mesh (GR1/GR2, F67 / F136 compliant)

• Platinum-coated titanium mesh (for electrolyzers, chlor-alkali, water treatment)

Our technical team provides application-based recommendations to help you choose the most cost-effective solution.

Technical Specifications

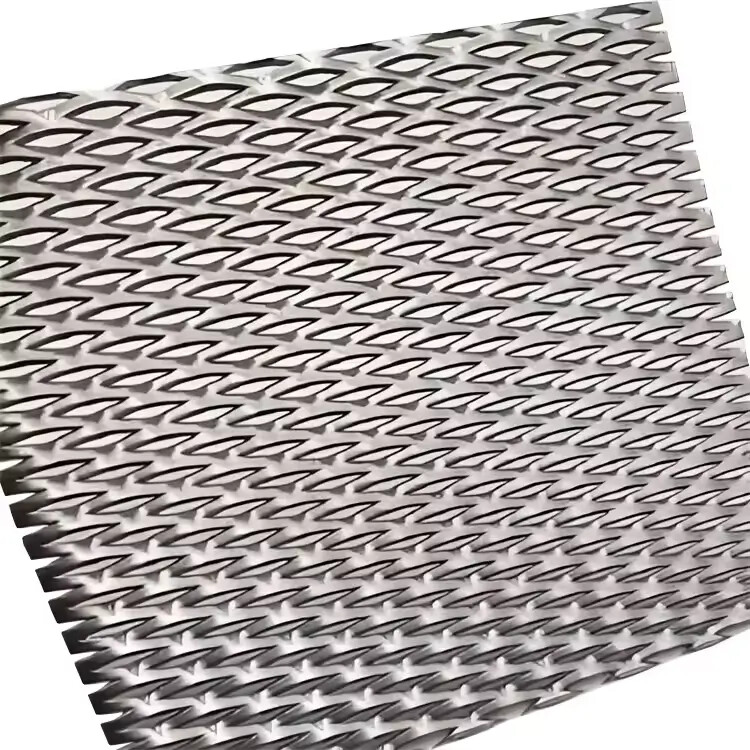

1. Expanded Titanium Mesh / Titanium Expanded Metal

Included: expanded titanium mesh, titanium expanded mesh, titanium expanded metal, titanium expanded metal mesh

• Manufactured through controlled slitting + expanding

• Lightweight, high-strength, excellent corrosion resistance

• Suitable for electrolysis, chlor-alkali industry, electrodes, filters, battery current collectors

Parameters:

• Thickness: 0.3–4 mm

• Strand width: 0.3–3.0 mm

• LWD (long way of diamond): 3–40 mm

• SWD (short way of diamond): 1–25 mm

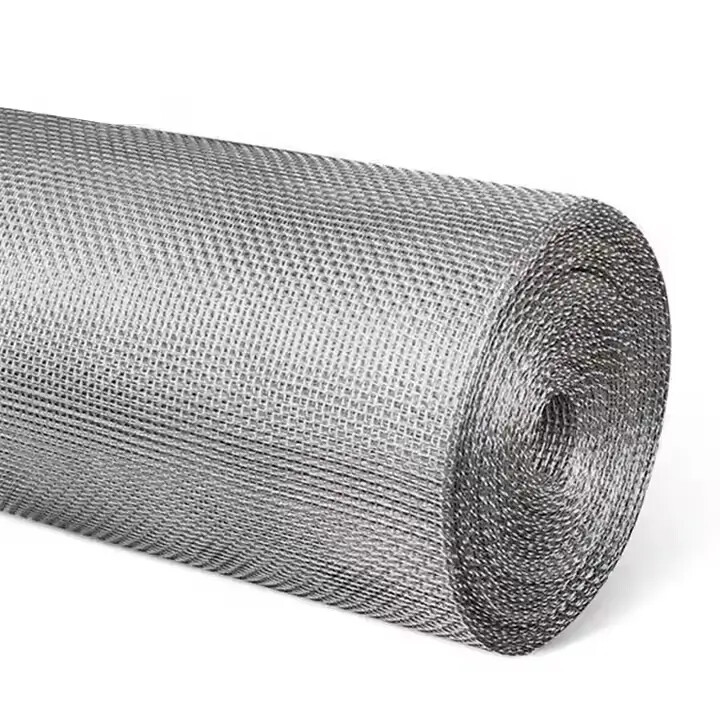

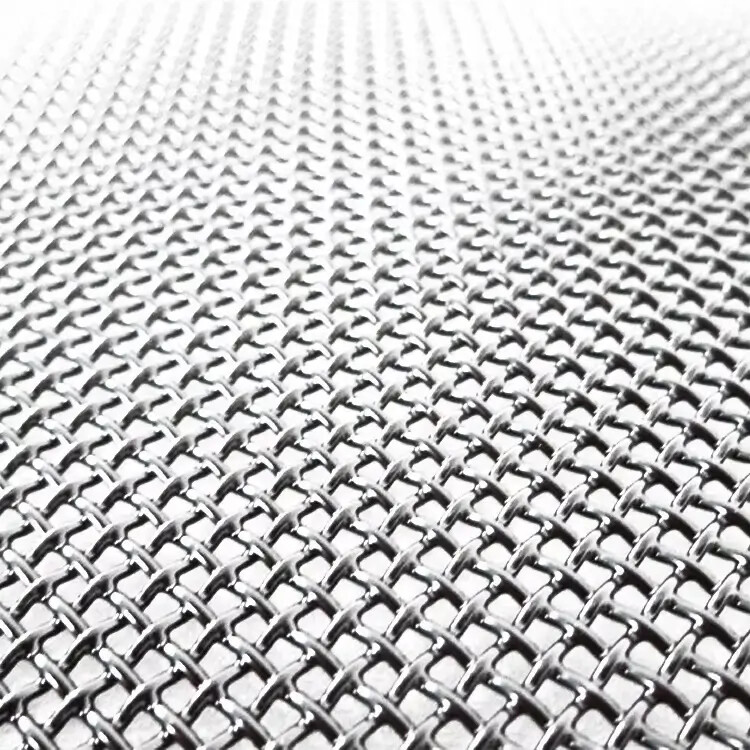

2. Titanium Woven Wire Mesh / Titanium Wire Cloth

Included: titanium wire mesh, titanium woven mesh, titanium wire cloth, titanium woven wire mesh, woven titanium mesh

• Woven using pure titanium wires

• Excellent for precision filtration, medical biological cages, battery collectors, aerospace filtration

• Available in plain weave, twill weave, Dutch weave

Parameters:

• Mesh Count: 10–250 mesh

• Wire Diameter: 0.03–0.5 mm

• Opening Size: 0.04–2.0 mm

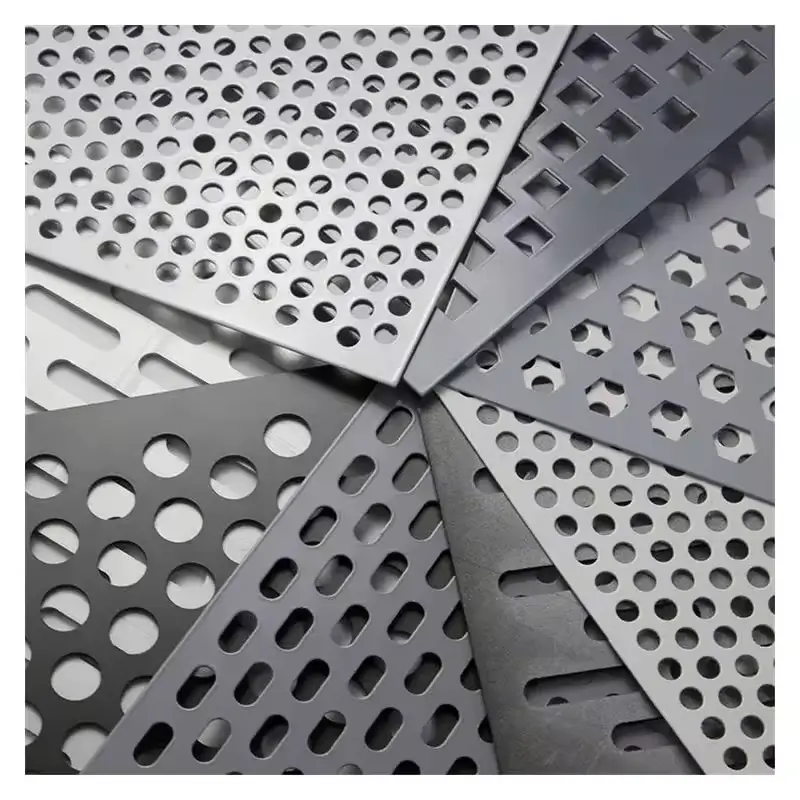

3. Titanium Perforated Sheet / Titanium Mesh Screen

Included: titanium perforated sheet, titanium mesh screen, titanium screen

• CNC perforated with round, square, slotted, or decorative holes

• Used in architectural cladding, sound insulation, filtration, aerospace shielding

Parameters:

• Thickness: 0.3–5 mm

• Hole Diameter: 0.5–15 mm

• Hole Pattern: round / square / slot / hex / custom

4. Medical Titanium Mesh

Included: medical titanium mesh, titanium mesh (medical)

• Material: GR2 & GR23 (Ti-6Al-4V ELI)

• Compliant with ASTM F67 / ASTM F136 medical standards

• Used for cranial reconstruction, maxillofacial repair, orthopedics, dental applications

Parameters:

• Thickness: 0.1–1.0 mm

• Aperture: 0.3–2 mm, customizable

• Format: flat mesh / pre-shaped mesh

5. Platinized Titanium Mesh / Platinum Coated Titanium Mesh

Included: platinized titanium mesh, platinum coated titanium mesh

• Titanium mesh coated with precious-metal Pt layer

• Highly stable in electrolytic and acidic environments

• Ideal for electroplating, cathodic protection, fuel cells, electrolyzers

Parameters:

• Substrate: GR1 / GR2 expanded or woven mesh

• Pt layer thickness: 0.5–10 μm

• Service life: long-term stability in seawater & acid solutions
